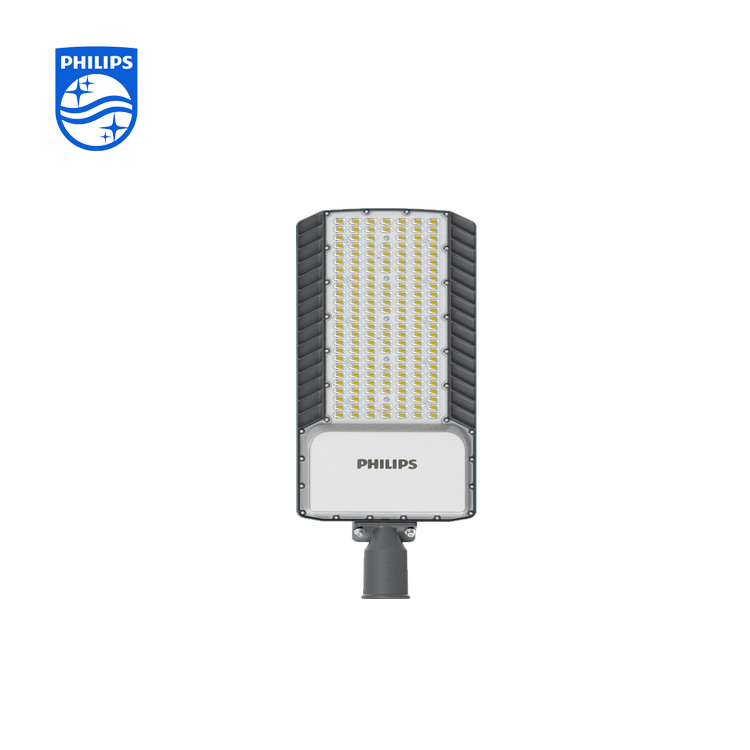

PHILIPS BRP262 LED119/NW 70W 220-240V DM0 9114 019 05193

Description

11,900 lm

Luminous Flux

180 lm/W

Efficacy

IP66 / IK08

Ingress & Impact Protection

50,000 hrs

Lifespan L70B50

SmartBright Series IP66 Road Light 4000K Neutral White

PHILIPS BRP262 LED119/NW 70W 220-240V DM0 9114 019 05193

Name: PHILIPS BRP262 LED119/NW 70W 220-240V DM0 9114 019 05193
Brand: Honnex Lighting
SKU: 04494
Availability: InStock
Rating: 5 (1 reviews)

Professional 70W LED road light with 11,900 lumens, DM0 distribution, and IP66 die-cast aluminum housing — ideal for residential roads, pathways, and parking lots.

70W

11,900 lm · 4000K Neutral White · DM0 Road Distribution
12NC: 9114 019 05193

Request Quote →

✓ Authorized Philips Distributor ✓ In Stock ✓ Worldwide Shipping ✓ CB · CE · CQC

Gallery

Product Images

View the BRP26X LED Road Light.

Designed for the road

Die-cast aluminum. PC optical lens. DM0 professional light distribution. 10kV surge protection. -40°C to +50°C.

Rugged Die-Cast Aluminum Housing

One-piece corrosion-resistant shell engineered for roadside environments. Withstands Category 15 typhoon wind force (52m/s) and 3G vibration testing at resonance points.

IP66 Sealed + IK08 Impact Rated

Full dust protection and powerful water jet resistance. IK08 rating withstands 5-joule impacts. Built for year-round outdoor use in all climates.

Professional DM0 Optics

Superior luminance distribution optimized for road lighting standards. High-efficiency PC optical lens ensures easy cleaning and consistent output over time.

10kV Surge Protection

Independent parallel SPD rated at 10kV. Protects against lightning-induced surges and grid fluctuations. CQC, CE, and CB certified for safety.

Dual Mounting: Side-Entry & Post-Top

Fits 48–60mm spigots. Side-entry adjustable ±15°. Post-top adjustable -10° to +15°. Pre-wired with 0.4m flying cable for quick installation.

180 lm/W High Efficacy

3030 LED platform delivers up to 180 lumens per watt at 4000K. Maximizes energy savings for municipalities while meeting road lighting standards.

Performance

Technical Specifications — 70W 4000K

This is the 70W / 4000K Neutral White variant. Professional DM0 road lighting distribution. All standard BRP26X specifications apply.

Luminous Flux

11,900 lm

Efficacy

180 lm/W (typical @4000K)

Color Temperature

4000K (Neutral White)

Light Distribution

DM0 — professional road lighting distribution

CRI

70 (typ.)

LED Platform

3030 Local Brand LED

Input Voltage

220V – 240V AC, 50/60Hz

Surge Protection

10kV (in parallel), independent SPD

Driver

Independent driver (non-dimmable, On/Off control)

IP / IK Rating

IP66 / IK08

Housing

Die-cast Aluminum

Lens & Cover

PC (Polycarbonate) Optical Lens

Lifespan

50,000 hrs L70B50 @35°C Outdoor

Operating Temperature

-40°C to +50°C

Mounting

Side entry 48–60mm: ±15° / Post top 48–60mm: -10° to +15°

Maintenance

Sealed unit (non-serviceable)

Certifications

CB, CE, CQC

How to order

Ordering Guide — 36 SKUs

Complete BRP26X family — BRP261 through BRP265 across 12 power levels and 3 color temperatures. Current selection highlighted.

12NC	Description	Watts	CCT	Qty/Ctn
9114 019 05183	BRP261 LED48/WW 30W 220-240V DM0	30W	3000K	4
9114 019 05184	BRP261 LED51/NW 30W 220-240V DM0	30W	4000K	4
9114 019 05185	BRP261 LED54/CW 30W 220-240V DM0	30W	5700K	4
9114 019 05186	BRP261 LED64/WW 40W 220-240V DM0	40W	3000K	4
9114 019 05187	BRP261 LED68/NW 40W 220-240V DM0	40W	4000K	4
9114 019 05188	BRP261 LED72/CW 40W 220-240V DM0	40W	5700K	4
9114 019 05189	BRP261 LED80/WW 50W 220-240V DM0	50W	3000K	4
9114 019 05190	BRP261 LED85/NW 50W 220-240V DM0	50W	4000K	4
9114 019 05191	BRP261 LED90/CW 50W 220-240V DM0	50W	5700K	4
9114 019 05192	BRP262 LED112/WW 70W 220-240V DM0	70W	3000K	2
9114 019 05193	BRP262 LED119/NW 70W 220-240V DM0	70W	4000K	2
9114 019 05194	BRP262 LED126/CW 70W 220-240V DM0	70W	5700K	2
9114 019 05195	BRP262 LED128/WW 80W 220-240V DM0	80W	3000K	2
9114 019 05196	BRP262 LED136/NW 80W 220-240V DM0	80W	4000K	2
9114 019 05197	BRP262 LED144/CW 80W 220-240V DM0	80W	5700K	2
9114 019 05198	BRP262 LED160/WW 100W 220-240V DM0	100W	3000K	2
9114 019 05199	BRP262 LED170/NW 100W 220-240V DM0	100W	4000K	2
9114 019 05201	BRP262 LED180/CW 100W 220-240V DM0	100W	5700K	2
9114 019 05202	BRP263 LED192/WW 120W 220-240V DM0	120W	3000K	1
9114 019 05203	BRP263 LED204/NW 120W 220-240V DM0	120W	4000K	1
9114 019 05204	BRP263 LED216/CW 120W 220-240V DM0	120W	5700K	1
9114 019 05205	BRP263 LED240/WW 150W 220-240V DM0	150W	3000K	1
9114 019 05206	BRP263 LED255/NW 150W 220-240V DM0	150W	4000K	1
9114 019 05207	BRP263 LED270/CW 150W 220-240V DM0	150W	5700K	1
9114 019 05208	BRP264 LED288/WW 180W 220-240V DM0	180W	3000K	1
9114 019 05209	BRP264 LED306/NW 180W 220-240V DM0	180W	4000K	1
9114 019 05210	BRP264 LED324/CW 180W 220-240V DM0	180W	5700K	1
9114 019 05211	BRP264 LED320/WW 200W 220-240V DM0	200W	3000K	1
9114 019 05212	BRP264 LED340/NW 200W 220-240V DM0	200W	4000K	1
9114 019 05213	BRP264 LED360/CW 200W 220-240V DM0	200W	5700K	1
9114 019 05214	BRP265 LED352/WW 220W 220-240V DM0	220W	3000K	1
9114 019 05215	BRP265 LED374/NW 220W 220-240V DM0	220W	4000K	1
9114 019 05216	BRP265 LED396/CW 220W 220-240V DM0	220W	5700K	1
9114 019 05217	BRP265 LED400/WW 250W 220-240V DM0	250W	3000K	1
9114 019 05218	BRP265 LED425/NW 250W 220-240V DM0	250W	4000K	1
9114 019 05219	BRP265 LED450/CW 250W 220-240V DM0	250W	5700K	1

Selected Variant 9114 019 05193 BRP262 LED119/NW 70W 220-240V DM0 Qty / Ctn: 2

Legend: WW=3000K | NW=4000K | CW=5700K | DM0=Road Lighting Distribution

Evolution

BRP121 → BRP26X — What Changed

The SmartBright generation delivers higher efficacy, better protection, and extended lifespan for professional road lighting.

BRP121 (Previous Gen)

2835 LED platform
Up to 140 lm/W efficacy
IP65 ingress protection
35,000 hrs L70B50 lifespan
6kV surge protection (DoB)
Up to 14,000 lm (100W max)

→

BRP26X SmartBright

3030 LED platform — higher performance tier
180 lm/W efficacy — 29% more efficient
IP66 + IK08 — superior ingress & impact ratings
50,000 hrs L70B50 — 43% longer lifespan
10kV independent SPD — parallel surge protection
Up to 45,000 lm — 250W across BRP261–265

BRP26X Power & Flux Range (Watts × Luminous Flux)

30W

4,800–5,400 lm

40W

6,400–7,200 lm

50W

8,000–9,000 lm

70W

11,200–12,600 lm

80W

12,800–14,400 lm

100W

16,000–18,000 lm

120W

19,200–21,600 lm

150W

24,000–27,000 lm

180W

28,800–32,400 lm

200W

32,000–36,000 lm

220W

35,200–39,600 lm

250W

40,000–45,000 lm

Highlighted: your selected 70W variant (11,900 lm). Physical dimensions available upon request.

Common questions

FAQ

What applications is this BRP262 70W designed for?

BRP262 is ideal for residential roads, connecting roads, suburban pathways, urban parking lots, and unified expressway lighting. Its DM0 optical distribution is purpose-built for road lighting standards.

How does the dual mounting system work?

BRP262 fits 48–60mm spigots in two configurations: side-entry with adjustable tilt ±15°, and post-top with adjustment from -10° to +15°. Comes pre-wired with a 0.4m flying cable for fast installation.

Is this 70W variant right for my project?

The 70W delivers 11,900 lm at 4000K. For larger roads or higher mounting heights, consider stepping up to higher wattages in the BRP26X series. Browse the full series or contact us for a project-specific recommendation.

Is it suitable for coastal or extreme weather areas?

Yes. IP66 rated for full dust and water jet protection, IK08 impact rated, tested to withstand Category 15 typhoon wind force (52m/s), and passed 3G vibration tests at resonance points. Operating range: -40°C to 50°C.

Can I mix color temperatures in one order?

Absolutely. We stock all 36 BRP26X SKUs across 3000K, 4000K, and 5700K. Contact our sales team with your requirements for a custom mixed quotation.

How does BRP262 compare to other Philips road lights?

BRP262 is part of the SmartBright entry-level road light family. For higher outputs or advanced features, explore the BRP26X series (BRP261–BRP265) with power options from 30W to 250W.
