Home > PHILIPS LED STREET LIGHT > PHILIPS BRP26X

PHILIPS BRP26X SmartBright LED Road Light

Description

180 lm/W

Efficacy

IP66 / IK08

Ingress & Impact Protection

50,000 hrs

Lifespan L70B50

30W – 250W

12 Power Options · 36 SKUs

SmartBright SeriesIP66 Road Light

PHILIPS BRP26X SmartBright LED Road Light

Name: PHILIPS BRP26X SmartBright LED Road Light
Brand: Honnex Lighting
SKU: 04520
Availability: InStock
Rating: 5 (1 reviews)

Complete BRP26X family — BRP261, BRP262, BRP263, BRP264, BRP265. 180 lm/W, IP66 die-cast aluminum, dual mounting, designed for municipalities, residential roads, and expressways.

Step 1: Select Watts

30W 40W 50W 70W 80W 100W 120W 150W 180W 200W 220W 250W

Step 2: Select Color Temperature

3000K Warm White 4000K Neutral White 5700K Cool White

Request Bulk Quote

✓ 15+ Years Philips Expertise✓ Large Inventory✓ Worldwide Shipping✓ CB · CE · CQC

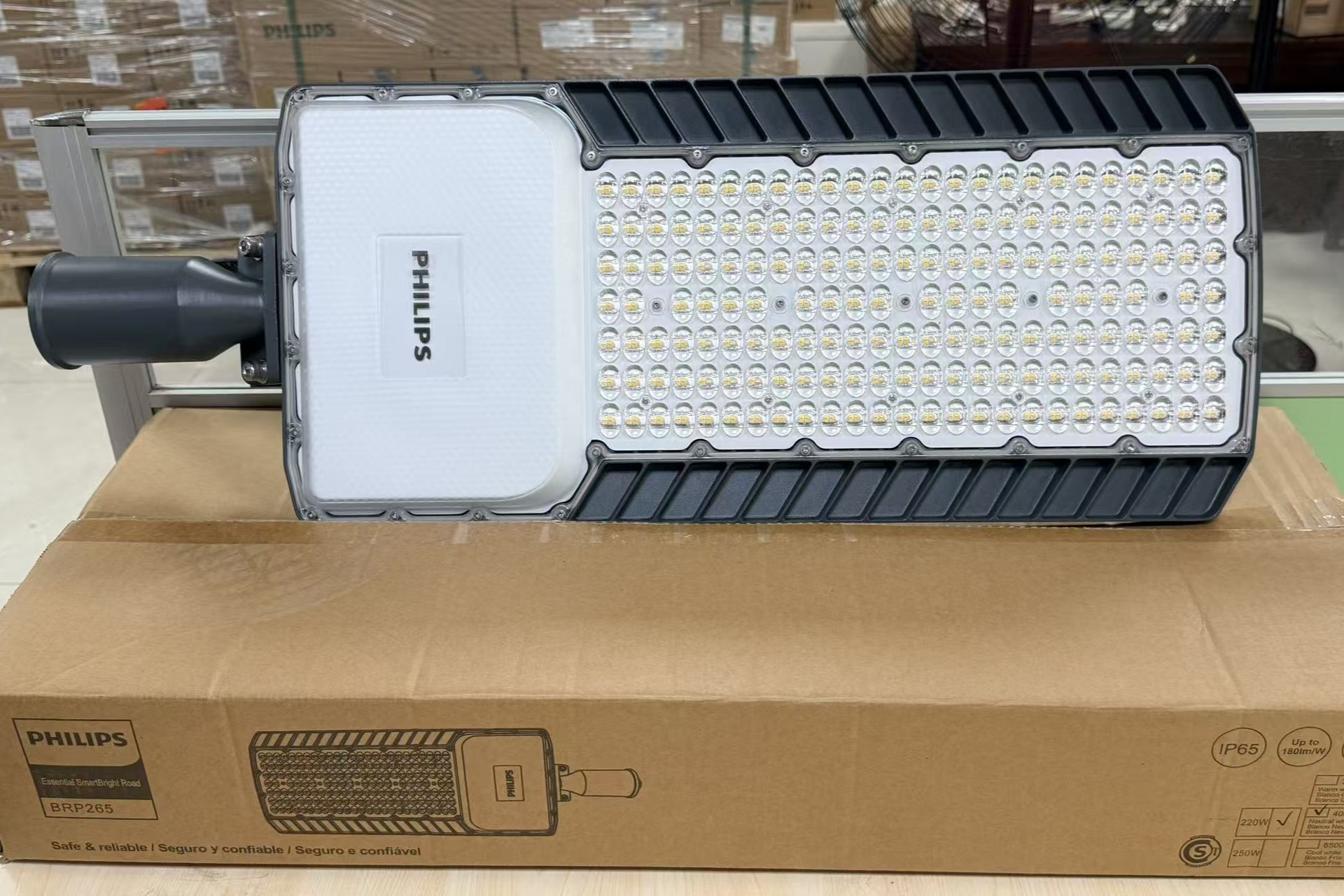

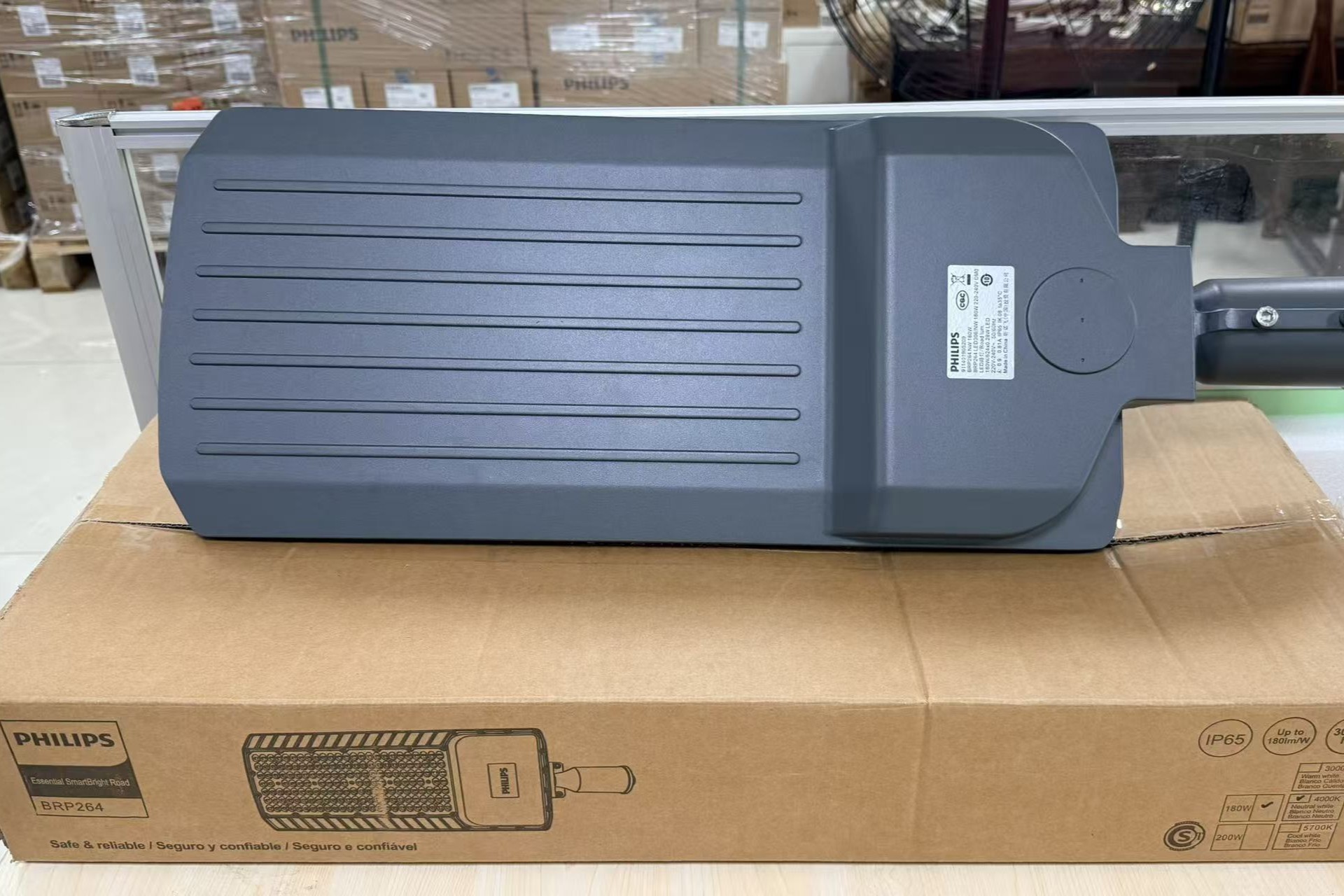

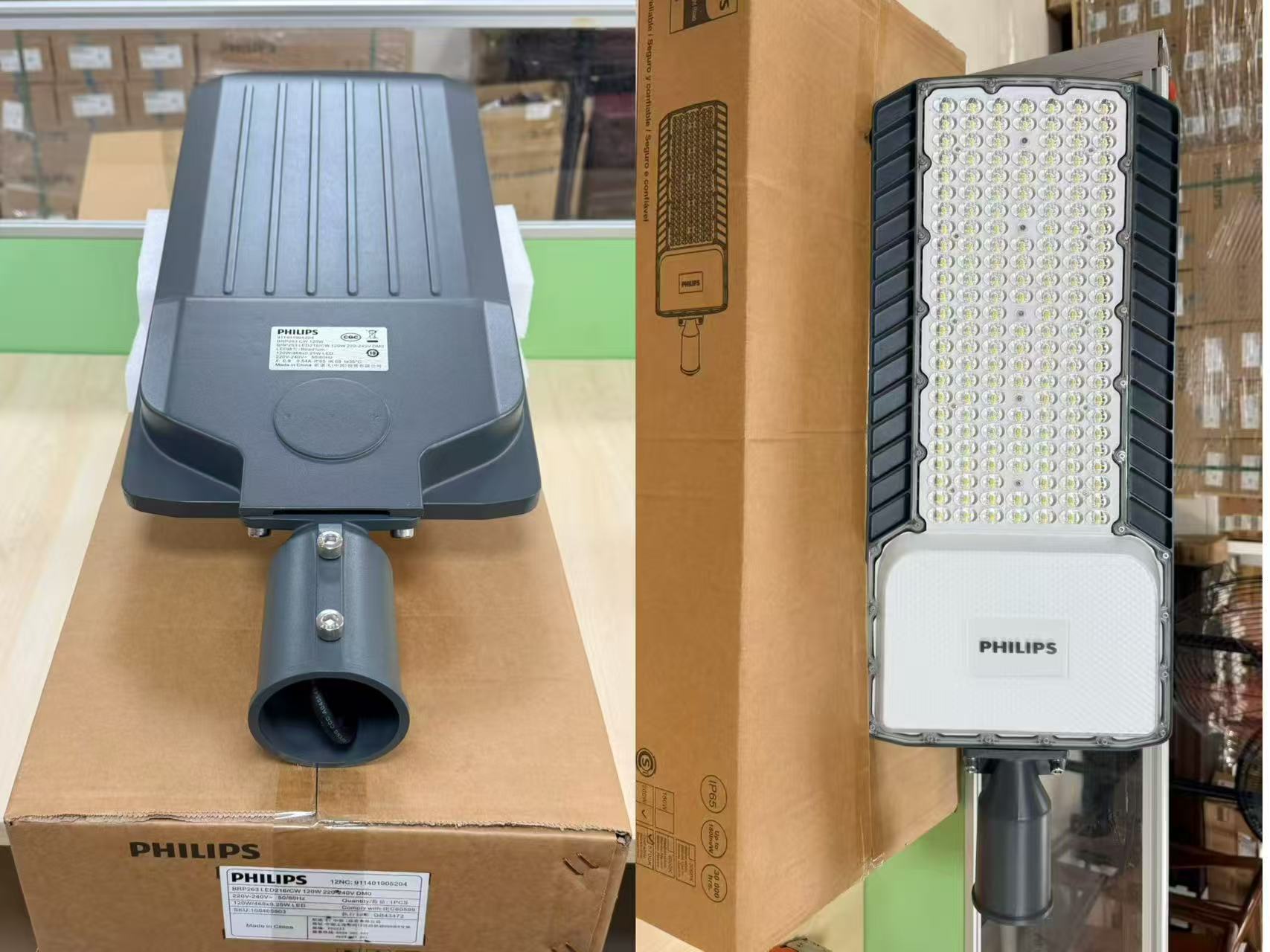

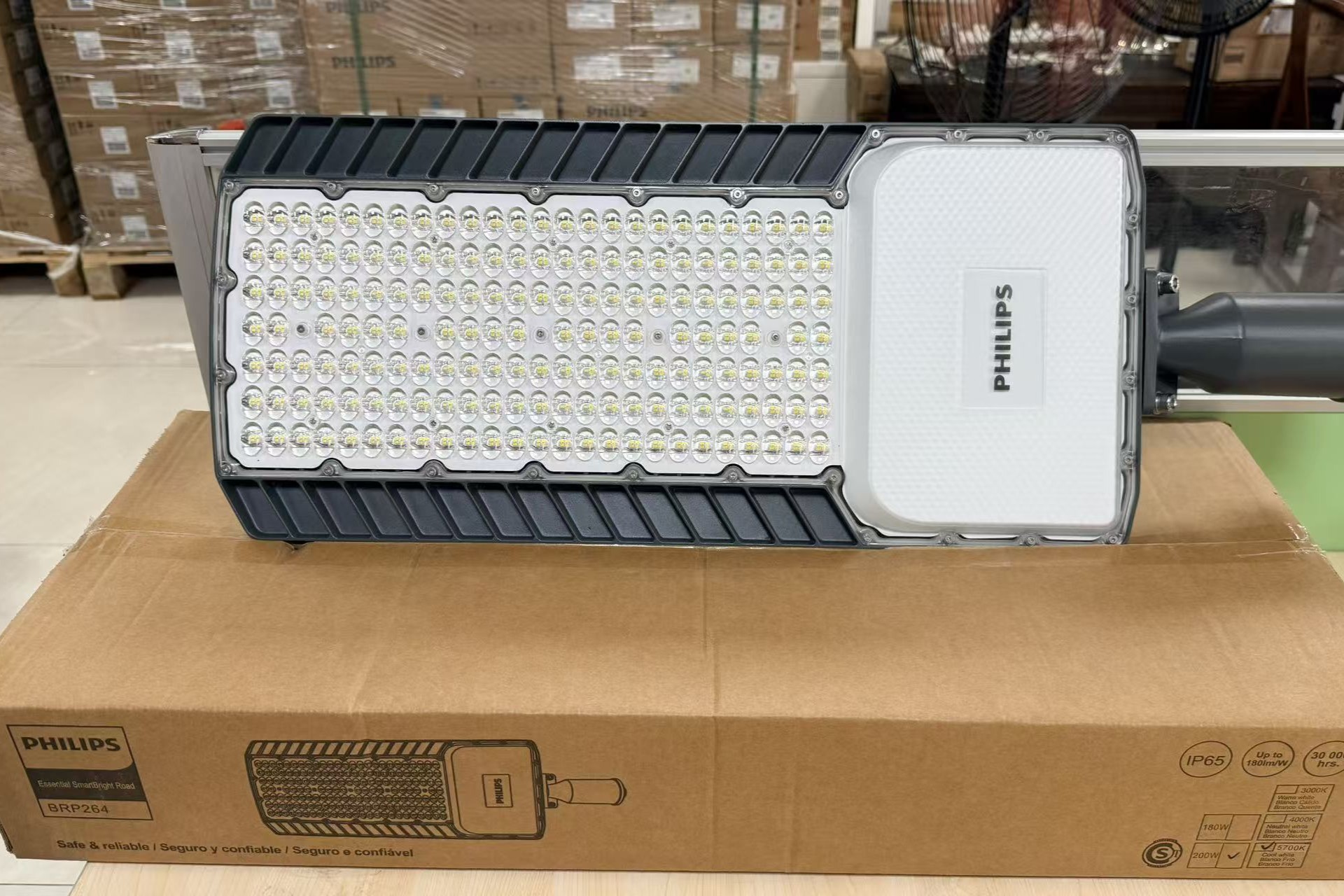

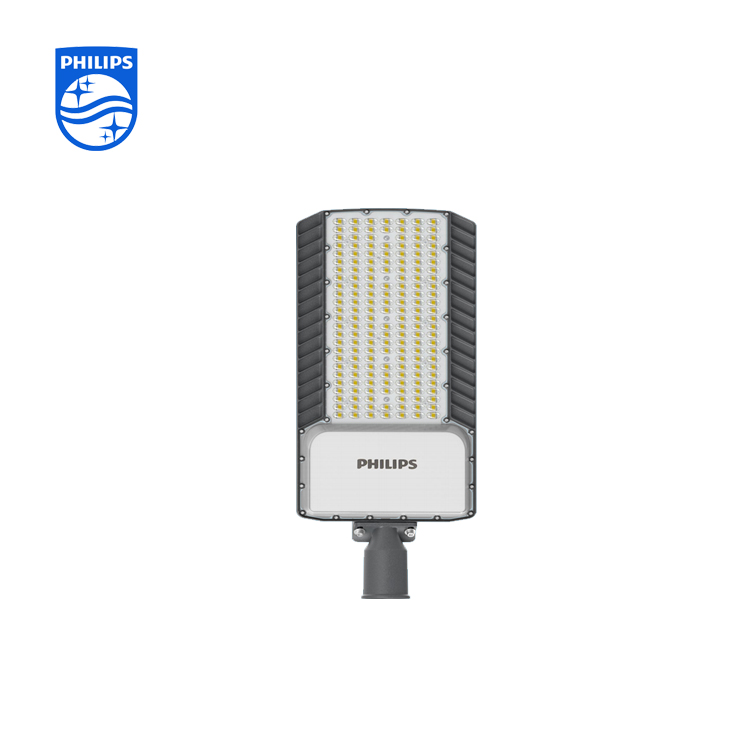

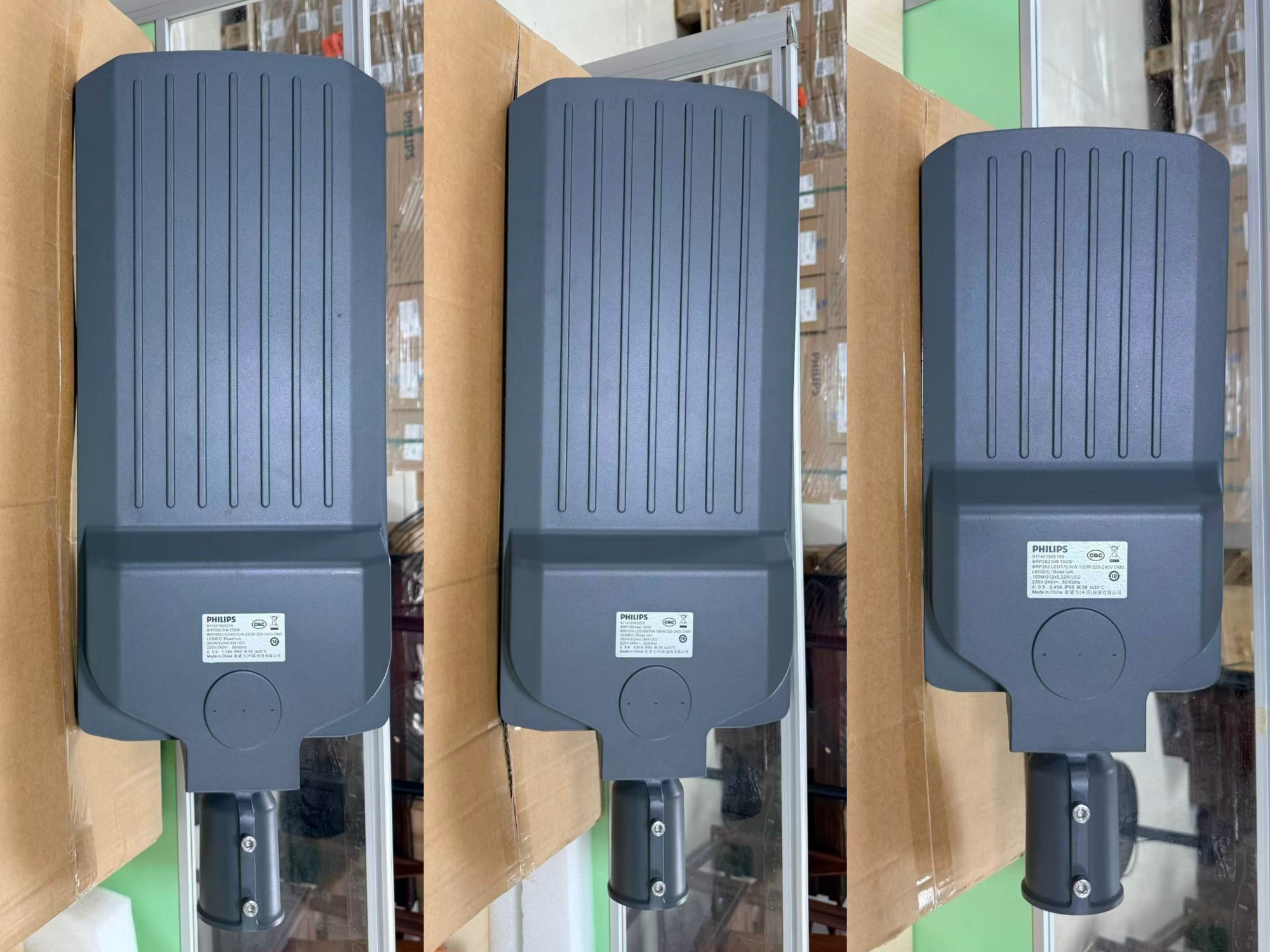

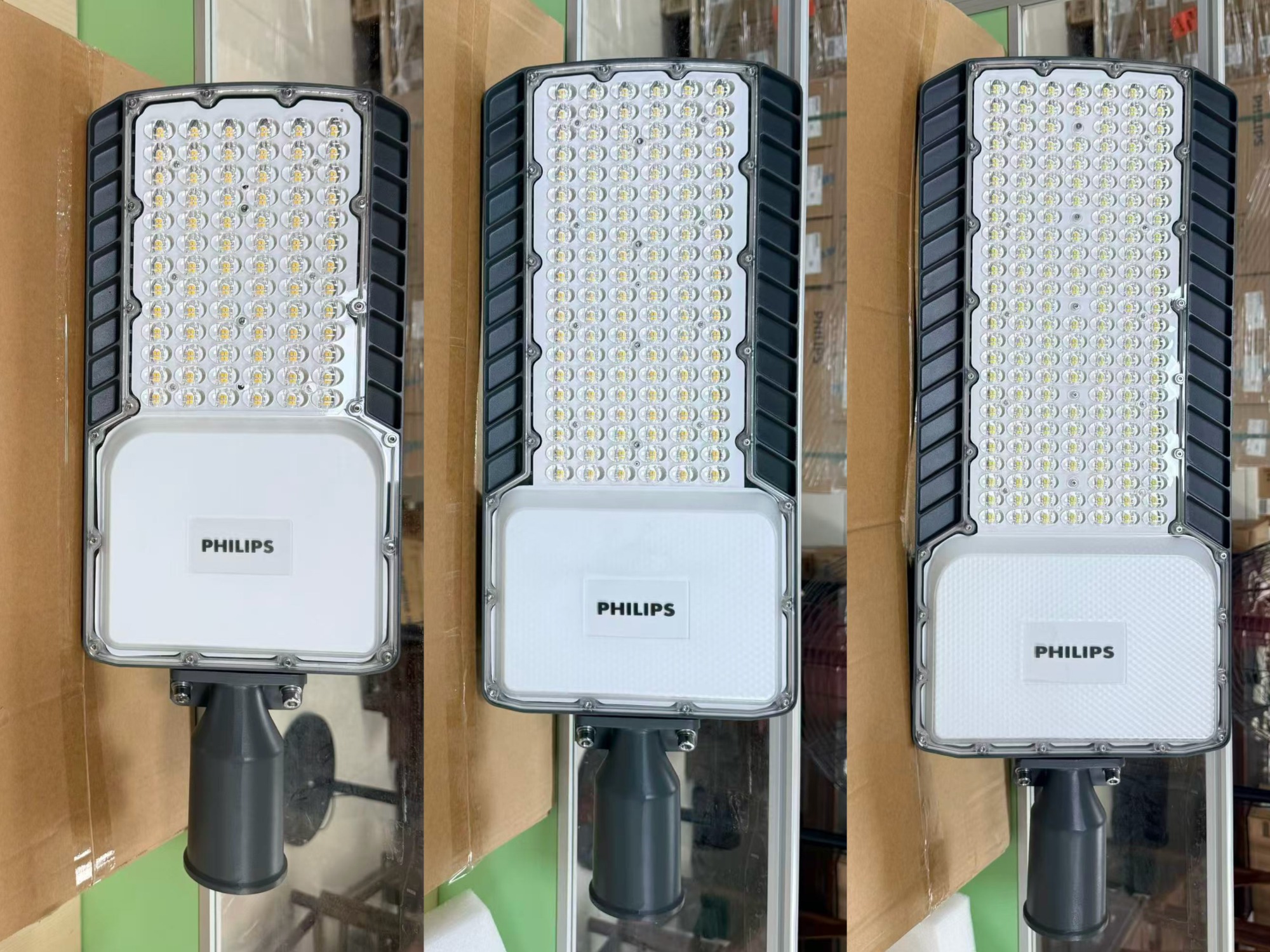

Gallery

Product Images

View the BRP26X LED Road Light.

Designed for the road

Die-cast aluminum. PC optical lens. DM0 professional light distribution. 10kV surge protection. -40°C to +50°C.

Rugged Die-Cast Aluminum

One-piece corrosion-resistant shell. Withstands Category 15 typhoon (52m/s) and 3G vibration testing.

IP66 Sealed + IK08

Full dust/water jet protection. 5-joule impact rating. Year-round outdoor use in all climates.

Professional DM0 Optics

Road lighting distribution optimised for uniform luminance. PC optical lens for easy cleaning.

10kV Surge Protection

Independent parallel SPD rated at 10kV. CQC, CE, and CB certified for electrical safety.

Dual Mounting

48–60mm spigots. Side-entry ±15°. Post-top -10°–+15°. 0.4m pre-wired flying cable.

180 lm/W Efficacy

3030 LED platform. Up to 180 lm/W at 4000K. Maximises energy savings for municipalities.

Performance

Technical Specifications

Complete BRP26X family. 5 series (BRP261/262/263/264/265), 12 power levels. All share 180 lm/W, IP66, DM0 distribution.

Luminous Flux Range

30W: 4,800–5,400 lm40W: 6,400–7,200 lm50W: 8,000–9,000 lm70W: 11,200–12,600 lm80W: 12,800–14,400 lm100W: 16,000–18,000 lm

120W: 19,200–21,600 lm150W: 24,000–27,000 lm180W: 28,800–32,400 lm200W: 32,000–36,000 lm220W: 35,200–39,600 lm250W: 40,000–45,000 lm

Efficacy

180 lm/W (typical @4000K)

Color Temperature

3000K (WW) / 4000K (NW) / 5700K (CW)

Light Distribution

DM0 — professional road lighting distribution

CRI

70 (typ.)

LED Platform

3030 Local Brand LED

Input Voltage

220V – 240V AC, 50/60Hz

Surge Protection

10kV (in parallel), independent SPD

Driver

Independent driver (non-dimmable, On/Off control)

IP / IK Rating

IP66 / IK08

Housing

Die-cast Aluminum

Lens & Cover

PC (Polycarbonate) Optical Lens

Lifespan

50,000 hrs L70B50 @35°C Outdoor

Operating Temperature

-40°C to +50°C

Mounting

Side entry 48–60mm: ±15° / Post top 48–60mm: -10° to +15°

Maintenance

Sealed unit (non-serviceable)

Certifications

CB, CE, CQC

How to order

Ordering Guide — 36 SKUs

Complete BRP26X family. All 36 SKUs with 12NC ordering codes. Click any 12NC to go to the individual product page.

12NC	Description	Watts	CCT	Qty/Ctn
9114-019-05183	BRP261 LED48/WW 30W 220-240V DM0	30W	3000K	4
9114-019-05184	BRP261 LED51/NW 30W 220-240V DM0	30W	4000K	4
9114-019-05185	BRP261 LED54/CW 30W 220-240V DM0	30W	5700K	4
9114-019-05186	BRP261 LED64/WW 40W 220-240V DM0	40W	3000K	4
9114-019-05187	BRP261 LED68/NW 40W 220-240V DM0	40W	4000K	4
9114-019-05188	BRP261 LED72/CW 40W 220-240V DM0	40W	5700K	4
9114-019-05189	BRP261 LED80/WW 50W 220-240V DM0	50W	3000K	4
9114-019-05190	BRP261 LED85/NW 50W 220-240V DM0	50W	4000K	4
9114-019-05191	BRP261 LED90/CW 50W 220-240V DM0	50W	5700K	4
9114-019-05192	BRP262 LED112/WW 70W 220-240V DM0	70W	3000K	2
9114-019-05193	BRP262 LED119/NW 70W 220-240V DM0	70W	4000K	2
9114-019-05194	BRP262 LED126/CW 70W 220-240V DM0	70W	5700K	2
9114-019-05195	BRP262 LED128/WW 80W 220-240V DM0	80W	3000K	2
9114-019-05196	BRP262 LED136/NW 80W 220-240V DM0	80W	4000K	2
9114-019-05197	BRP262 LED144/CW 80W 220-240V DM0	80W	5700K	2
9114-019-05198	BRP262 LED160/WW 100W 220-240V DM0	100W	3000K	2
9114-019-05199	BRP262 LED170/NW 100W 220-240V DM0	100W	4000K	2
9114-019-05201	BRP262 LED180/CW 100W 220-240V DM0	100W	5700K	2
9114-019-05202	BRP263 LED192/WW 120W 220-240V DM0	120W	3000K	1
9114-019-05203	BRP263 LED204/NW 120W 220-240V DM0	120W	4000K	1
9114-019-05204	BRP263 LED216/CW 120W 220-240V DM0	120W	5700K	1
9114-019-05205	BRP263 LED240/WW 150W 220-240V DM0	150W	3000K	1
9114-019-05206	BRP263 LED255/NW 150W 220-240V DM0	150W	4000K	1
9114-019-05207	BRP263 LED270/CW 150W 220-240V DM0	150W	5700K	1
9114-019-05208	BRP264 LED288/WW 180W 220-240V DM0	180W	3000K	1
9114-019-05209	BRP264 LED306/NW 180W 220-240V DM0	180W	4000K	1
9114-019-05210	BRP264 LED324/CW 180W 220-240V DM0	180W	5700K	1
9114-019-05211	BRP264 LED320/WW 200W 220-240V DM0	200W	3000K	1
9114-019-05212	BRP264 LED340/NW 200W 220-240V DM0	200W	4000K	1
9114-019-05213	BRP264 LED360/CW 200W 220-240V DM0	200W	5700K	1
9114-019-05214	BRP265 LED352/WW 220W 220-240V DM0	220W	3000K	1
9114-019-05215	BRP265 LED374/NW 220W 220-240V DM0	220W	4000K	1
9114-019-05216	BRP265 LED396/CW 220W 220-240V DM0	220W	5700K	1
9114-019-05217	BRP265 LED400/WW 250W 220-240V DM0	250W	3000K	1
9114-019-05218	BRP265 LED425/NW 250W 220-240V DM0	250W	4000K	1
9114-019-05219	BRP265 LED450/CW 250W 220-240V DM0	250W	5700K	1

Legend: WW=3000K | NW=4000K | CW=5700K | DM0=Road Lighting Distribution | Qty/Ctn — verify with datasheet

Evolution

BRP121 → BRP26X — What Changed

The SmartBright generation delivers higher efficacy, better protection, and extended lifespan for professional road lighting.

BRP121 (Previous Gen)

2835 LED platform
Up to 140 lm/W efficacy
IP65 ingress protection
35,000 hrs L70B50 lifespan
6kV surge protection (DoB)
Up to 14,000 lm (100W max)

→

BRP26X SmartBright

3030 LED platform — higher performance tier
180 lm/W efficacy — 29% more efficient
IP66 + IK08 — superior ratings
50,000 hrs L70B50 — 43% longer lifespan
10kV independent SPD — parallel surge protection
Up to 45,000 lm — 250W across BRP261–265

BRP26X Power & Flux Range

30W

4,800–5,400 lm

40W

6,400–7,200 lm

50W

8,000–9,000 lm

70W

11,200–12,600 lm

80W

12,800–14,400 lm

100W

16,000–18,000 lm

120W

19,200–21,600 lm

150W

24,000–27,000 lm

180W

28,800–32,400 lm

200W

32,000–36,000 lm

220W

35,200–39,600 lm

250W

40,000–45,000 lm

Common questions

FAQ

What applications is BRP26X designed for?

BRP26X is ideal for residential roads, connecting roads, suburban pathways, urban parking lots, and unified expressway lighting. Its DM0 distribution is purpose-built for road lighting standards.

How does the dual mounting system work?

BRP26X fits 48–60mm spigots: side-entry ±15°, and post-top -10° to +15°. Pre-wired with 0.4m flying cable.

Is it suitable for coastal or extreme weather?

Yes. IP66 rated, IK08 impact rated, Category 15 typhoon tested (52m/s), 3G vibration tested. Range: -40°C to 50°C.

How do I choose the right wattage?

Lumen output ranges from 4,800 lm (BRP261 30W) to 45,000 lm (BRP265 250W). Select wattage based on mounting height, pole spacing, and road luminance requirements. Use the variant selector above to find your exact SKU.

Can I mix color temperatures in one order?

Absolutely. We stock all 36 SKUs across 3000K, 4000K, and 5700K. Mixed orders across the entire BRP26X family are supported.

How does BRP26X compare to other Philips road lights?

BRP26X is the SmartBright entry-level road light — cost-optimised for budget-conscious municipalities. For advanced features, explore BRP13 (RoadFlair Gen2) or BRP49 with NEMA socket and dimming.
