Name: PHILIPS BVP118 G2 LED Floodlight
Brand: Honnex Lighting
SKU: 04547
Availability: InStock
Rating: 5 (1 reviews)

Home > PHILIPS LED FLOOD LIGHT > PHILIPS BVP118

Description

90 lm/W

Efficacy (all wattages)

IP65 / IK05

Ingress & Impact Protection

10W – 200W

6 Power Options · 18 SKUs

200 hrs

Salt Spray Tested

2nd Generation Die-Cast Aluminum 3000K · 4000K · 6500K

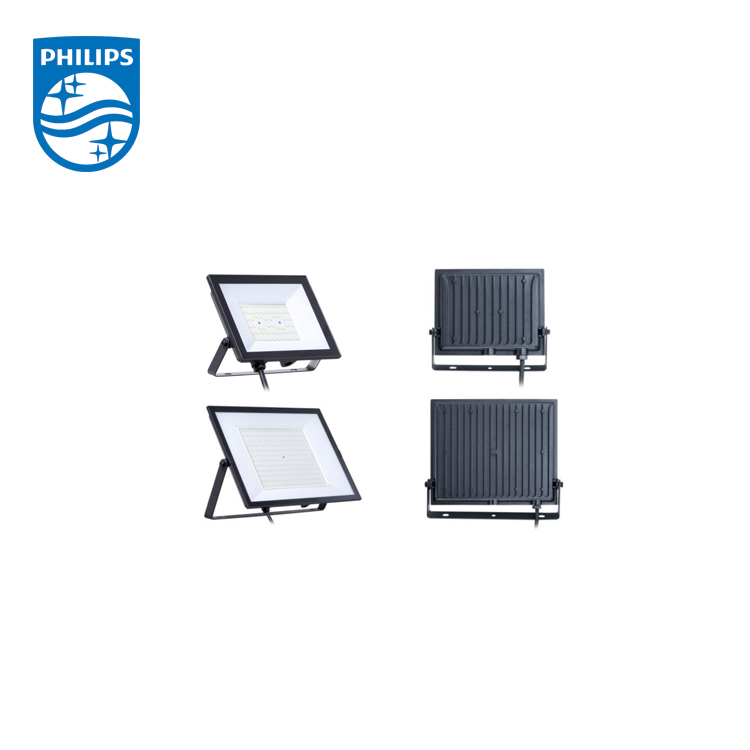

PHILIPS BVP118 G2 LED Floodlight

The 2nd generation entry-level LED floodlight from Signify — DoB compact design, die-cast aluminum housing, salt-spray tested for outdoor facades, landscape, signage and stadium use.

Step 1: Select Watts

10W 30W 50W 100W 150W 200W

Step 2: Select Color Temperature

3000K Warm White 4000K Neutral White 6500K Cool White

Request Bulk Quote

✓ 15+ Years Philips Expertise ✓ Large Inventory · Fast Shipping ✓ Worldwide Delivery ✓ CQC Certified

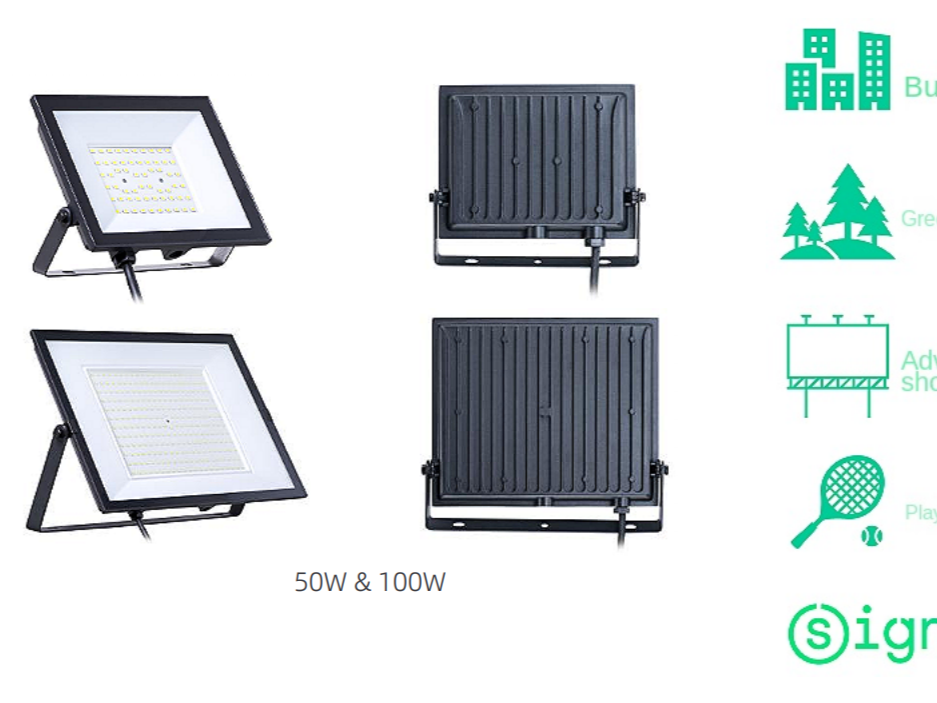

Gallery

Product Images

View the BVP118 G2 from every angle.

Designed for the outdoors

Die-cast aluminum shell. Tempered glass. U-bracket with 300° rotation. -20°C to +40°C. 200-hour salt-spray tested.

Die-Cast Aluminum Housing

One-piece corrosion-resistant shell, RAL9005 finish. 200-hour salt-spray tested. -20°C to +40°C operation across the full range.

IP65 Sealed + IK05

Full dust & water jet protection. IK05 mechanical impact rating. Built for year-round outdoor exposure, including coastal & high-humidity areas.

DoB Driver-on-Board

Integrated driver — no external driver box. Slimmer form factor, easier install. Just connect to 220–240V AC mains.

U-Bracket, 300° Rotation

New U-shaped bracket replaces the G1 hinge. 300° rotation for precise aiming on facades, landscape, and signage.

6 Wattages · 3 CCTs

10W to 200W in 6 options. 3000K / 4000K / 6500K. 18 SKUs cover residential, commercial, and stadium-grade applications.

Tiered Surge Protection

0.5KV/1KV (10W) → 1KV/2KV (30–100W) → 2KV/4KV (150–200W). 0.9 power factor. Class-leading electrical safety for its class.

Performance

Technical Specifications

DoB integrated driver. Aluminum housing. 18 SKUs covering 900–18,000 lm.

Luminous Flux (4000K / 6500K)

10W: 900 lm30W: 2,700 lm50W: 4,500 lm 100W: 9,000 lm150W: 13,500 lm200W: 18,000 lm

Efficacy

90 lm/W (all wattages)

Color Temperature

3000K (WW) / 4000K (NW) / 6500K (CW)

Beam Angle

10W: 100° · 30W–200W: 110°

CRI / SDCM

CRI ≥ 80 · SDCM ≤ 6

Power Factor

0.9

Input Voltage

220V – 240V AC, 50/60Hz

Driver Type

DoB (Driver-on-Board) — integrated, no external driver needed

Surge Protection

10W: 0.5KV/1KV · 30–100W: 1KV/2KV · 150–200W: 2KV/4KV

IP / IK Rating

IP65 / IK05

Housing

Die-cast Aluminum, RAL9005 finish

Salt Spray Test

200 hours

Operating Temperature

-20°C to +40°C

External Wire

150mm × 3 × 1.0mm² rubber cable

Certifications

CQC

How to order

Ordering Guide — 18 SKUs

Complete BVP118 G2 range with ordering codes. Watts highlighted for quick scanning.

12NC	Description	Watts	CCT	Qty/Ctn
9114 018 89188	BVP118 G2 LED Flood 10W WW	10W	3000K	40
9114 018 89288	BVP118 G2 LED Flood 10W NW	10W	4000K	40
9114 018 89388	BVP118 G2 LED Flood 10W CW	10W	6500K	40
9114 018 89488	BVP118 G2 LED Flood 30W WW	30W	3000K	20
9114 018 89588	BVP118 G2 LED Flood 30W NW	30W	4000K	20
9114 018 89688	BVP118 G2 LED Flood 30W CW	30W	6500K	20
9114 018 89788	BVP118 G2 LED Flood 50W WW	50W	3000K	20
9114 018 89888	BVP118 G2 LED Flood 50W NW	50W	4000K	20
9114 018 89988	BVP118 G2 LED Flood 50W CW	50W	6500K	20
9114 018 90088	BVP118 G2 LED Flood 100W WW	100W	3000K	10
9114 018 90188	BVP118 G2 LED Flood 100W NW	100W	4000K	10
9114 018 90288	BVP118 G2 LED Flood 100W CW	100W	6500K	10
9114 018 90388	BVP118 G2 LED Flood 150W WW	150W	3000K	5
9114 018 90488	BVP118 G2 LED Flood 150W NW	150W	4000K	5
9114 018 90588	BVP118 G2 LED Flood 150W CW	150W	6500K	5
9114 018 90688	BVP118 G2 LED Flood 200W WW	200W	3000K	5
9114 018 90788	BVP118 G2 LED Flood 200W NW	200W	4000K	5
9114 018 90888	BVP118 G2 LED Flood 200W CW	200W	6500K	5

Legend: WW=3000K (Warm White) | NW=4000K (Neutral White) | CW=6500K (Cool White) | DoB=Driver-on-Board | MOQ on request — contact our sales team

Evolution

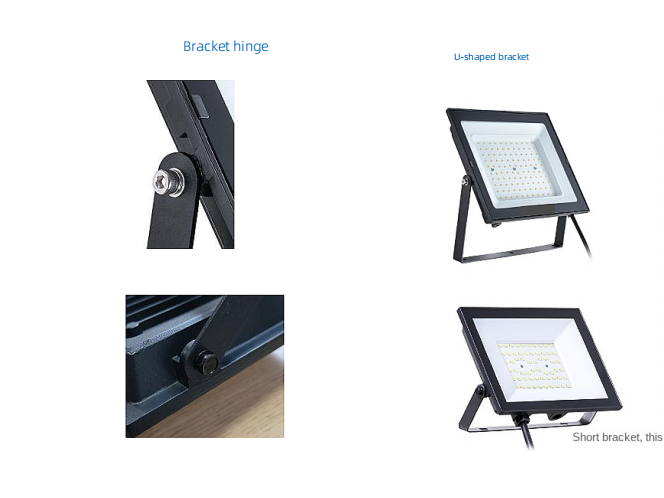

BVP118 G1 → G2 — What Changed

Smaller housing. New U-bracket with 300° rotation. Better fit for facades, landscape and signage.

BVP118 G1

Hinge bracket (支架铰链)
Larger housing (e.g. 100W: 274 × 236 × 30 mm)
Higher profile (29–31.5 mm height across range)
Standard 100W total dimensions 274×236×30
Standard exterior wiring

→

BVP118 G2

U-bracket with 300° rotation — replaces G1 hinge
More compact housing — e.g. 100W: 257 × 225 × 27 mm
Slimmer profile — 24–29 mm height across range
100W total 257×225×27 — smaller in all dimensions
Optimized 150mm rubber cable — 3×1.0mm² outdoor grade

G2 Outer Dimensions (L × W × H in mm)

10W

97 × 88 × 24

30W

142 × 122 × 25

50W

180 × 154 × 25

100W

257 × 225 × 27

150W

325 × 285 × 29

200W

385 × 315 × 29

Common questions

FAQ

BVP118 G2 vs G1 — what's the difference?

The G2 swaps the G1 hinge bracket for a U-bracket with 300° rotation, and the housing is slimmer — 100W drops from 274×236×30 mm to 257×225×27 mm. Heights across the range are reduced to 24–29 mm. Same DoB driver, same 90 lm/W efficacy, same 220–240V input.

Is the BVP118 G2 suitable for outdoor use?

Yes. IP65 sealed against dust and water jets, IK05 impact rated, and 200-hour salt-spray tested. Operating temperature is -20°C to +40°C. The die-cast aluminum housing with RAL9005 finish holds up to year-round outdoor exposure, including coastal and high-humidity sites.

What does DoB mean?

Driver-on-Board. The driver circuit is integrated onto the LED board — no external driver box. The fixture is slimmer, lighter, and easier to install. Just connect the 150mm rubber cable (3×1.0mm²) to 220–240V AC mains.

Why does the beam angle differ at 10W?

10W is rated at 100° beam; 30W–200W is rated at 110°. Both are wide-flood designs suited to facade, landscape, and signage. If you need a narrow beam for long-throw sports lighting, step up to a higher-output BVP-series luminaire.

Why do the surge protection specs vary by wattage?

Surge protection is tiered by wattage: 10W gets 0.5KV/1KV, 30W–100W gets 1KV/2KV, and 150W–200W gets 2KV/4KV. Higher-wattage units handle larger driver stages and are typically installed in more exposed locations, so they get the stronger surge rating.

How do I select the right wattage?

Rule of thumb: 10–30W for residential facades, garden paths, small signs. 50–100W for commercial facades, mid-size signs, parking areas. 150–200W for sports fields, large billboards, and warehouse exteriors. For mounting height, allow roughly 1–1.5 m of throw distance per 10W.
