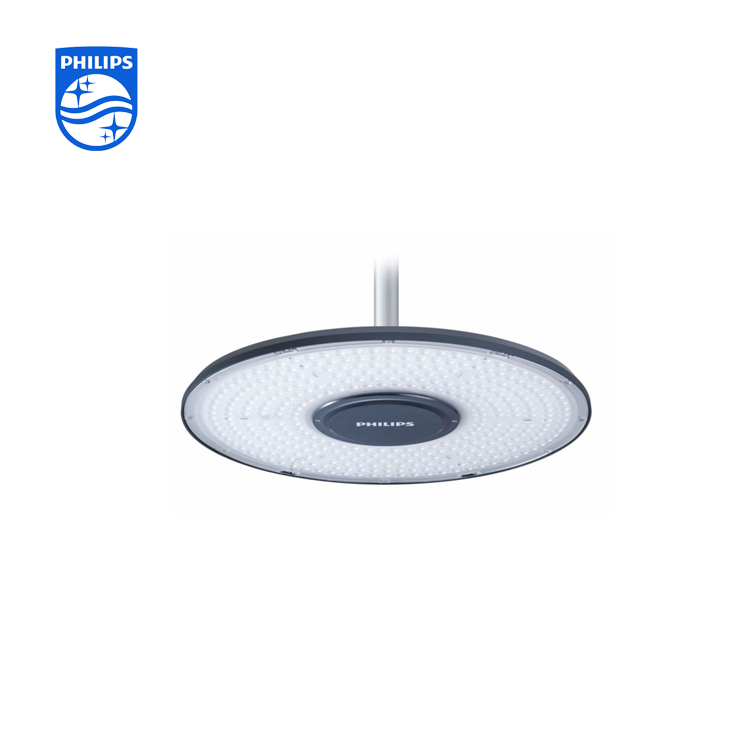

PHILIPS LED High Bay BY778P LED150/NW PSD WB 9114 016 26609

Description

~180 lm/W

System Efficacy

15,000 lm

Luminous Flux

82W

System Power

IP66/IK08

Industrial Protection

GreenPerform Elite G2 PSD · WB 4000K Neutral White

Philips’ GreenPerform Elite G2 high-bay luminaire (BY778P) — no heatsink fins, smooth easy-clean design, professional Fresnel lens and a 100,000-hour lifetime.

The LED150 WB high-bay — 15,000 lm at 82W, 4000K, WB (90°±5°), UGR UGR 25. PSD control, 100,000-hour lifetime.

PHILIPS LED High Bay BY778P LED150/NW PSD WB 9114 016 26609

Name: PHILIPS LED High Bay BY778P LED150/NW PSD WB 9114 016 26609
Brand: Honnex Lighting
SKU: 04682
Availability: InStock
Rating: 5 (1 reviews)

15,000 lm 82W · 4000K Neutral White · Wide Beam · PSD 12NC: 9114 016 26609

Color Temperature & Beam Angle

This model: 4000K (NW, Neutral White) · WB (90°±5°), UGR UGR 25. All 84 GreenPerform Elite G2 BY778P SKUs in stock — mixed orders welcome.

Request Bulk Quote

✓ 15+ Years Philips Expertise ✓ Large Inventory · Fast Shipping ✓ Worldwide Delivery ✓ Genuine Philips Product

Gallery

Product Images

View the GreenPerform Elite G2 BY778P LED150 high-bay.

Designed for industrial high-bay spaces

GreenPerform Elite G2 BY778P — LED150, 15,000 lm at 82W, 4000K, WB, ~180 lm/W.

15,000 lm at 82W

~180 lm/W efficacy — class-leading efficiency that pays back the investment faster.

PSD Control

PSD — DALI dimmable (standard).

Wide Beam · UGR UGR 25

Wide Beam (90°±5°) with UGR UGR 25 glare control for comfortable, safe working light.

100,000 hrs L70B50

Ultra-long 100,000-hour lifetime (L70B50, Ta 35°C) slashes relamping and maintenance cost.

IP66/IK08 Protection

Dust-tight, water-jet-proof and impact-resistant for demanding production environments.

No Fins · Easy Clean

Finless, smooth housing that is easy to clean — ideal for hygienic and low-maintenance environments.

Performance

Technical Specifications — LED150 / PSD / NW

Exact specifications for the Philips BY778P LED150/NW PSD WB (12NC 9114 016 26609).

Luminous Flux

15,000 lm

System Power

82W

System Efficacy

~180 lm/W (typical)

Color Temperature

4000K (NW, Neutral White)

CRI

Beam Angle

WB (90°±5°)

Glare Rating

UGR 25

Surge Protection

4 kV / 4 kV

Flicker

MD < 3.2% · Pst < 0.5 · SVM < 0.4

Insulation Class

Class I

Operating Temperature

-40°C ~ +50°C

IP / IK Rating

IP66/IK08

Control Version

PSD — DALI dimmable (standard)

Lifespan

100,000 hrs L70B50 @ Ta 35°C

How to order

Ordering Guide — 84 SKUs

Complete GreenPerform Elite G2 BY778P range with ordering codes. Your selected model is highlighted below.

PSU — On/Off (standard) (28 SKUs)

12NC	Description	Watts	Lumen	CCT	Beam
9114 016 20609	BY778P LED100/NW PSU WB	51W	10,000 lm	4000K	WB
9114 016 20709	BY778P LED100/NW PSU NB	51W	10,000 lm	4000K	NB
9114 016 20809	BY778P LED100/CW PSU WB	51W	10,000 lm	6500K	WB
9114 016 20909	BY778P LED100/CW PSU NB	51W	10,000 lm	6500K	NB
9114 016 21009	BY778P LED150/NW PSU WB	78W	15,000 lm	4000K	WB
9114 016 21109	BY778P LED150/NW PSU NB	78W	15,000 lm	4000K	NB
9114 016 21209	BY778P LED150/CW PSU WB	78W	15,000 lm	6500K	WB
9114 016 21309	BY778P LED150/CW PSU NB	78W	15,000 lm	6500K	NB
9114 016 21409	BY778P LED200/NW PSU WB	105W	20,000 lm	4000K	WB
9114 016 21509	BY778P LED200/NW PSU NB	105W	20,000 lm	4000K	NB
9114 016 21609	BY778P LED200/CW PSU WB	105W	20,000 lm	6500K	WB
9114 016 21709	BY778P LED200/CW PSU NB	105W	20,000 lm	6500K	NB
9114 016 21809	BY778P LED250/NW PSU WB	130W	25,000 lm	4000K	WB
9114 016 21909	BY778P LED250/NW PSU NB	130W	25,000 lm	4000K	NB
9114 016 22009	BY778P LED250/CW PSU WB	130W	25,000 lm	6500K	WB
9114 016 22109	BY778P LED250/CW PSU NB	130W	25,000 lm	6500K	NB
9114 016 22209	BY778P LED300/NW PSU WB	155W	30,000 lm	4000K	WB
9114 016 22309	BY778P LED300/NW PSU NB	155W	30,000 lm	4000K	NB
9114 016 22409	BY778P LED300/CW PSU WB	155W	30,000 lm	6500K	WB
9114 016 22509	BY778P LED300/CW PSU NB	155W	30,000 lm	6500K	NB
9114 016 22609	BY778P LED350/NW PSU WB	184W	35,000 lm	4000K	WB
9114 016 22709	BY778P LED350/NW PSU NB	184W	35,000 lm	4000K	NB
9114 016 22809	BY778P LED350/CW PSU WB	184W	35,000 lm	6500K	WB
9114 016 22909	BY778P LED350/CW PSU NB	184W	35,000 lm	6500K	NB
9114 016 23009	BY778P LED400/NW PSU WB	210W	40,000 lm	4000K	WB
9114 016 23109	BY778P LED400/NW PSU NB	210W	40,000 lm	4000K	NB
9114 016 23209	BY778P LED400/CW PSU WB	210W	40,000 lm	6500K	WB
9114 016 23309	BY778P LED400/CW PSU NB	210W	40,000 lm	6500K	NB

PSD — DALI dimmable (standard) (28 SKUs)

12NC	Description	Watts	Lumen	CCT	Beam
9114 016 26209	BY778P LED100/NW PSD WB	55W	10,000 lm	4000K	WB
9114 016 26309	BY778P LED100/NW PSD NB	55W	10,000 lm	4000K	NB
9114 016 26409	BY778P LED100/CW PSD WB	55W	10,000 lm	6500K	WB
9114 016 26509	BY778P LED100/CW PSD NB	55W	10,000 lm	6500K	NB
9114 016 26609	BY778P LED150/NW PSD WB	82W	15,000 lm	4000K	WB
9114 016 26709	BY778P LED150/NW PSD NB	82W	15,000 lm	4000K	NB
9114 016 26809	BY778P LED150/CW PSD WB	82W	15,000 lm	6500K	WB
9114 016 26909	BY778P LED150/CW PSD NB	82W	15,000 lm	6500K	NB
9114 016 27009	BY778P LED200/NW PSD WB	110W	20,000 lm	4000K	WB
9114 016 27109	BY778P LED200/NW PSD NB	110W	20,000 lm	4000K	NB
9114 016 27209	BY778P LED200/CW PSD WB	110W	20,000 lm	6500K	WB
9114 016 27309	BY778P LED200/CW PSD NB	110W	20,000 lm	6500K	NB
9114 016 27409	BY778P LED250/NW PSD WB	137W	25,000 lm	4000K	WB
9114 016 27509	BY778P LED250/NW PSD NB	137W	25,000 lm	4000K	NB
9114 016 27609	BY778P LED250/CW PSD WB	137W	25,000 lm	6500K	WB
9114 016 27709	BY778P LED250/CW PSD NB	137W	25,000 lm	6500K	NB
9114 016 38909	BY778P LED280/NW PSD WB	153W	28,000 lm	4000K	WB
9114 016 38709	BY778P LED280/NW PSD NB	153W	28,000 lm	4000K	NB
9114 016 38509	BY778P LED280/CW PSD WB	153W	28,000 lm	6500K	WB
9114 016 38309	BY778P LED280/CW PSD NB	153W	28,000 lm	6500K	NB
9114 016 28209	BY778P LED350/NW PSD WB	196W	35,000 lm	4000K	WB
9114 016 28309	BY778P LED350/NW PSD NB	196W	35,000 lm	4000K	NB
9114 016 28409	BY778P LED350/CW PSD WB	196W	35,000 lm	6500K	WB
9114 016 28509	BY778P LED350/CW PSD NB	196W	35,000 lm	6500K	NB
9114 016 28609	BY778P LED400/NW PSD WB	222W	40,000 lm	4000K	WB
9114 016 28709	BY778P LED400/NW PSD NB	222W	40,000 lm	4000K	NB
9114 016 28809	BY778P LED400/CW PSD WB	222W	40,000 lm	6500K	WB
9114 016 28909	BY778P LED400/CW PSD NB	222W	40,000 lm	6500K	NB

SIA — Interact wireless (smart) (28 SKUs)

12NC	Description	Watts	Lumen	CCT	Beam
9114 016 31809	BY778X LED100/NW SIA WB	55W	10,000 lm	4000K	WB
9114 016 31909	BY778X LED100/NW SIA NB	55W	10,000 lm	4000K	NB
9114 016 32009	BY778X LED100/CW SIA WB	55W	10,000 lm	6500K	WB
9114 016 32109	BY778X LED100/CW SIA NB	55W	10,000 lm	6500K	NB
9114 016 32209	BY778X LED150/NW SIA WB	82W	15,000 lm	4000K	WB
9114 016 32309	BY778X LED150/NW SIA NB	82W	15,000 lm	4000K	NB
9114 016 32409	BY778X LED150/CW SIA WB	82W	15,000 lm	6500K	WB
9114 016 32509	BY778X LED150/CW SIA NB	82W	15,000 lm	6500K	NB
9114 016 32609	BY778X LED200/NW SIA WB	110W	20,000 lm	4000K	WB
9114 016 32709	BY778X LED200/NW SIA NB	110W	20,000 lm	4000K	NB
9114 016 32809	BY778X LED200/CW SIA WB	110W	20,000 lm	6500K	WB
9114 016 32909	BY778X LED200/CW SIA NB	110W	20,000 lm	6500K	NB
9114 016 33009	BY778X LED250/NW SIA WB	137W	25,000 lm	4000K	WB
9114 016 33109	BY778X LED250/NW SIA NB	137W	25,000 lm	4000K	NB
9114 016 33209	BY778X LED250/CW SIA WB	137W	25,000 lm	6500K	WB
9114 016 33309	BY778X LED250/CW SIA NB	137W	25,000 lm	6500K	NB
9114 016 39109	BY778X LED280/NW SIA WB	153W	28,000 lm	4000K	WB
9114 016 39209	BY778X LED280/NW SIA NB	153W	28,000 lm	4000K	NB
9114 016 39309	BY778X LED280/CW SIA WB	153W	28,000 lm	6500K	WB
9114 016 39409	BY778X LED280/CW SIA NB	153W	28,000 lm	6500K	NB
9114 016 33809	BY778X LED350/NW SIA WB	196W	35,000 lm	4000K	WB
9114 016 33909	BY778X LED350/NW SIA NB	196W	35,000 lm	4000K	NB
9114 016 34009	BY778X LED350/CW SIA WB	196W	35,000 lm	6500K	WB
9114 016 34109	BY778X LED350/CW SIA NB	196W	35,000 lm	6500K	NB
9114 016 34209	BY778X LED400/NW SIA WB	222W	40,000 lm	4000K	WB
9114 016 34309	BY778X LED400/NW SIA NB	222W	40,000 lm	4000K	NB
9114 016 34409	BY778X LED400/CW SIA WB	222W	40,000 lm	6500K	WB
9114 016 34509	BY778X LED400/CW SIA NB	222W	40,000 lm	6500K	NB

Looking for the complete overview? See the GreenPerform Elite G2 BY778P series page → Upgrade to the LED200 version (20,000 lm, WB) → Also available in 6500K Cool White (12NC 9114 016 26809) →

The full range

All 84 Configurations

Compare the complete GreenPerform Elite G2 BY778P range — control version, output, color temperature and beam angle for every configuration.

Control Version

PSU · On/Off (standard) PSD · DALI dimmable (standard) SIA · Interact wireless (smart)

Color Temperature

4000K Neutral White 6500K Cool White

Beam Angle

WB Wide Beam NB Narrow Beam

Output Tiers

LED100

10,000 lm

LED150

15,000 lm

LED200

20,000 lm

LED250

25,000 lm

LED280

28,000 lm

LED300

30,000 lm

LED350

35,000 lm

LED400

40,000 lm

Common questions

FAQ — LED150 / NW / WB

What is the LED150 PSD 4000K WB best for?

Delivers 15,000 lm at 82W (~180 lm/W) — ideal for factories, warehouses, exhibition halls and indoor venues. The Wide Beam gives UGR 25 glare control for comfortable, uniform light. The same output is also available in 6500K Cool White (12NC 9114 016 26809).

What does the PSD control version mean?

PSD — DALI dimmable (standard). PSU is On/Off; PSD adds DALI dimming; SIA is the Interact wireless version. The same output tier and beam are available in the other control versions — see the series page for the full range.

WB or NB beam — which should I pick?

This model is WB (90°±5°) with UGR 25 glare control. Wide Beam (90°) spreads light evenly for general area lighting; Narrow Beam (55°) concentrates light for high racks and tall aisles with tighter glare control.

What are the key specs of this model?

15,000 lm at 82W, ~180 lm/W efficacy, 4000K (NW), WB (90°±5°), UGR UGR 25, CRI 80, surge 4kV/4kV, IP66/IK08, Class I, 100,000-hour lifetime (L70B50, Ta 35°C).
