Description

CRI ≥ 90

Full-Spectrum Color Rendering

IP40 / IP20

Light Face IP40 · Housing IP20

1,440–2,700 lm

8 Configurations · 2 Panel Sizes × 2 CCTs

35 mm

Ultra-Thin · Drop-In Panel

2nd Generation Integrated Ceiling Panel Kitchen & Bath

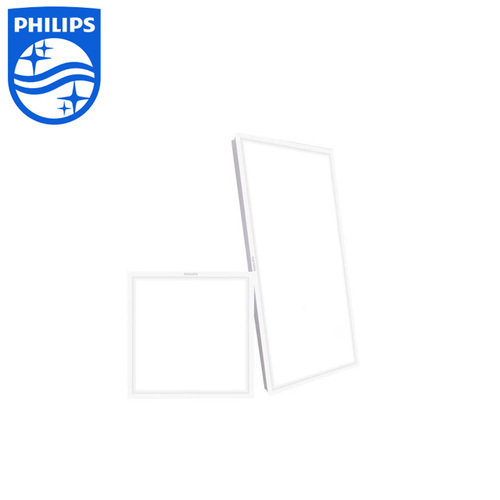

PHILIPS RC052 G2 LED Ceiling Light

Name: PHILIPS RC052 G2 LED Ceiling Light
Brand: Honnex Lighting
SKU: 04556
Availability: InStock
Rating: 5 (1 reviews)

Philips’ slim integrated LED ceiling panel for kitchens and bathrooms — full-spectrum high-CRI light, IP40 light-emitting face, 35 mm thin housing and a fully-sealed plastic back shell. Eight SKUs across two panel sizes and two color temperatures.

1,440–2,700 lm · 4000K / 6000K · CRI ≥ 90
8 Configurations · 12NC: 9114 019 05827 – 9114 019 05834

Step 1: Select Panel Size & Wattage

18W · 300 × 300 mm 24W · 300 × 300 mm 24W · 300 × 600 mm 36W · 300 × 600 mm

Step 2: Select Color Temperature

4000K Neutral White 6000K Cool White

Selected Variant

RC052 G2 24W / 300 × 300 mm / 4000K 12NC: 9114 019 05828

Go to Product →

Request Bulk Quote

✓ 15+ Years Philips Expertise ✓ Large Inventory ✓ Worldwide Shipping ✓ CQC Certified

Gallery

Product Images

View the RC052-G2 ceiling panel range from every angle.

Designed for the kitchen and bath

Full-spectrum light. IP40 light face. 35 mm thin housing. Sealed plastic back shell. Drop-in modules for 300 × 300 / 300 × 600 integrated ceilings.

Full-Spectrum, CRI ≥ 90

High color rendering index (CRI ≥ 90) renders food, skin tones and surfaces accurately. Full-spectrum output, no harmful blue-light spike — comfortable for long cooking or grooming sessions.

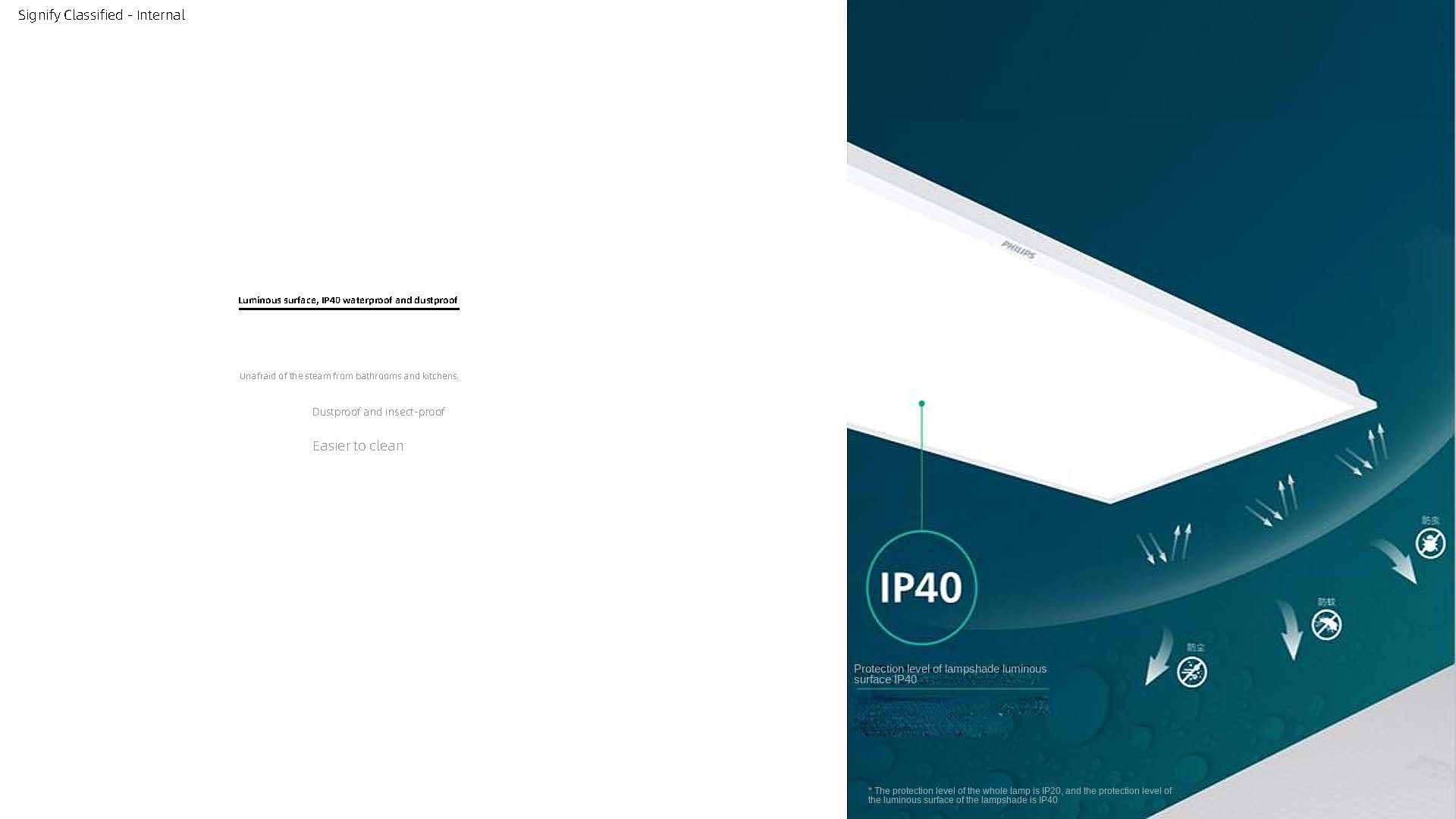

IP40 Light Face

Light-emitting face is rated IP40 — protected against splashing water, dust and insects. Safe above kitchen sinks and next to shower zones. Whole-fixture IP20 (indoor ceiling void).

35 mm Ultra-Thin Housing

35 mm total panel thickness fits shallow ceiling voids and low-ceiling installations. No clearance issues in standard residential ceilings or low-profile integrated ceilings.

High Output, Even Light

Direct-lit (down-lit) LED architecture paired with a high-transmittance diffuser. 1,440–2,700 lm delivered evenly across the full panel — no hot spots, no dark corners.

Fully-Sealed Plastic Shell

All-plastic back housing with a fully-closed back shell — no exposed metal, no condensation risk, corrosion-proof in humid kitchens and bathrooms.

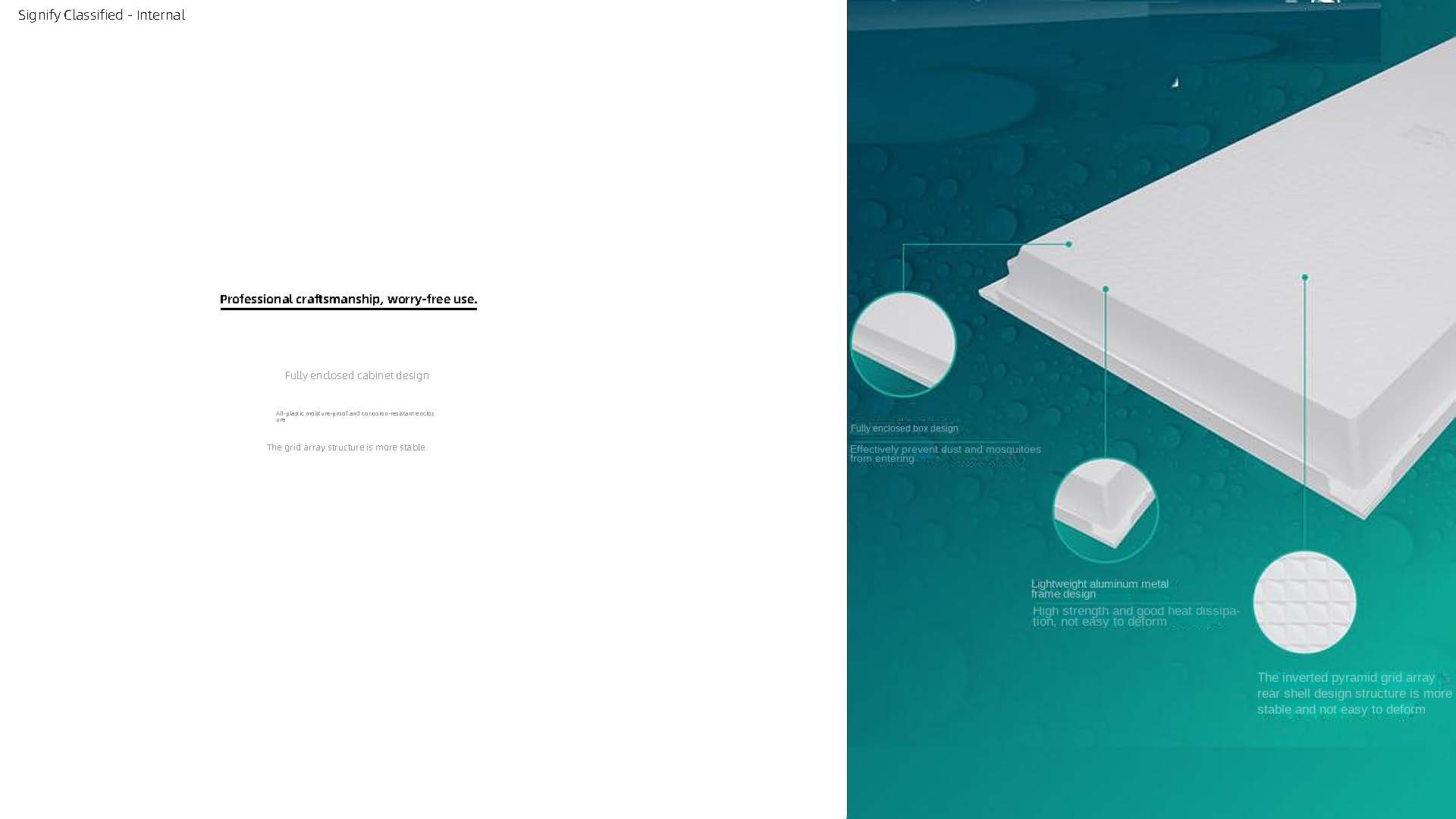

Grid-Array Reinforced Structure

Internal grid-array reinforcement keeps the panel flat over years of thermal cycling. No warping, no sagging, no light leak from the seams.

Performance

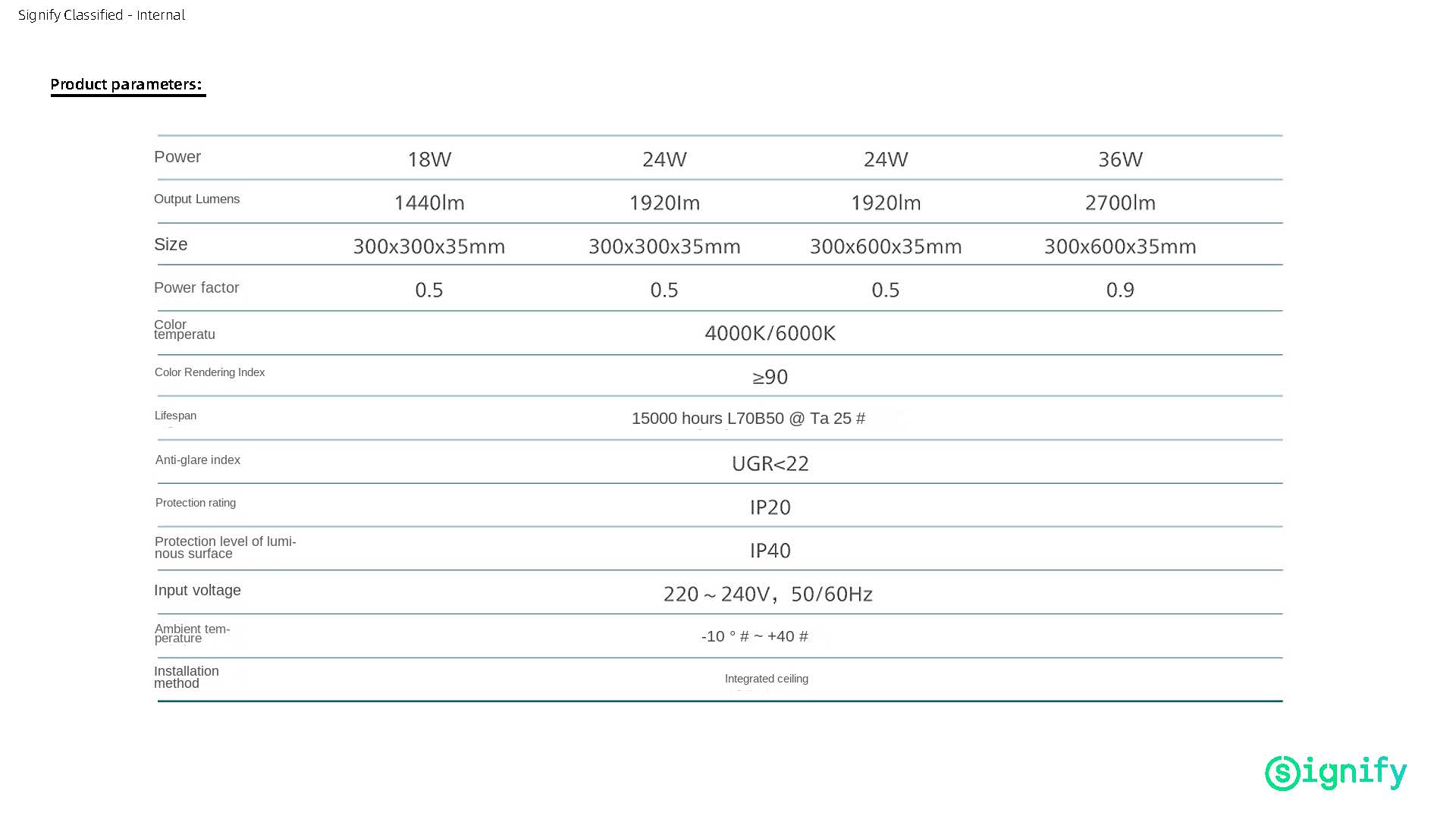

Technical Specifications

Four power levels across two panel sizes, two color temperatures. One sealed, corrosion-proof platform.

Luminous Flux

1,440 lm1,920 lm1,920 lm2,700 lm

LED Power

18W24W24W36W

Efficacy

~80 lm/W (18W / 24W) · 75 lm/W (36W)

Color Temperature

4000K (NW) / 6000K (CW) — fixed per SKU

CRI

≥ 90 (full-spectrum, no harmful blue spike)

UGR (Glare)

UGR < 22 (indoor task-area compliant)

Power Factor

0.5 (18W / 24W) · 0.9 (36W)

Input Voltage

220V – 240V AC, 50/60Hz

IP Rating

IP40 light-emitting face · IP20 whole fixture (indoor ceiling void)

Panel Dimensions (L × W × H)

300 × 300 × 35 mm (W30L30) | 300 × 600 × 35 mm (W30L60)

Mounting

Integrated ceiling (T-bar grid) — drop-in module

Housing

All-plastic fully-sealed back shell, white

Lifespan

15,000 hrs L70B50 @ Ta 25°C

Operating Temperature

-10°C to +40°C

Certifications

CQC

How to order

Ordering Guide — 8 SKUs

Complete RC052-G2 range with ordering codes. Two panel sizes × two color temperatures.

12NC	Description	Watts	CCT	Qty/Ctn
911401905827	RC052 G2 LED Ceiling Light 18W W30L30 NW	18W	4000K	20
911401905828	RC052 G2 LED Ceiling Light 24W W30L30 NW	24W	4000K	20
911401905829	RC052 G2 LED Ceiling Light 24W W30L60 NW	24W	4000K	10
911401905830	RC052 G2 LED Ceiling Light 36W W30L60 NW	36W	4000K	10
911401905831	RC052 G2 LED Ceiling Light 18W W30L30 CW	18W	6000K	20
911401905832	RC052 G2 LED Ceiling Light 24W W30L30 CW	24W	6000K	20
911401905833	RC052 G2 LED Ceiling Light 24W W30L60 CW	24W	6000K	10
911401905834	RC052 G2 LED Ceiling Light 36W W30L60 CW	36W	6000K	10

Legend: NW=4000K (Neutral White) | CW=6000K (Cool White) | W30L30=300×300 mm panel | W30L60=300×600 mm panel | Qty/Ctn=pieces per master carton

Full-spectrum CRI ≥ 90 across all 8 SKUs. MOQ on request. Contact our sales team for pricing and lead time.

The full range

All 8 Configurations

Compare the complete RC052-G2 range — panel sizes, outputs and color temperatures for every configuration.

Panel Size & Wattage

18W · W30L30

300 × 300 × 35 mm

24W · W30L30

300 × 300 × 35 mm

24W · W30L60

300 × 600 × 35 mm

36W · W30L60

300 × 600 × 35 mm

Color Temperature

4000K Neutral White6000K Cool White

Common questions

FAQ

What is the RC052-G2 best for?

The RC052-G2 is a slim integrated LED ceiling panel family purpose-built for kitchens, bathrooms, hallways and utility rooms. Eight SKUs cover every standard ceiling module — 300 × 300 mm (18W/24W) and 300 × 600 mm (24W/36W) panels, each in 4000K or 6000K. Pick the panel that matches your ceiling grid, not the other way around.

What is the difference between IP40 and IP20 on this panel?

IP40 is the rating of the light-emitting face — the visible surface of the panel — meaning it is protected against splashing water, dust and insects. IP20 is the rating of the full fixture body, meaning it is for indoor ceiling-void use. Together they are exactly what you need in a kitchen or bathroom: the panel face can sit directly above a sink or next to a shower zone, while the wiring cavity stays in the dry ceiling space above. The spec sheet calls this out explicitly: whole-fixture IP20, light-emitting face IP40.

4000K vs 6000K — which should I pick?

4000K (Neutral White) is the standard choice for kitchens, bathrooms, hallways and work areas — it renders colors cleanly and feels bright without being cold. 6000K (Cool White) reads crisper and slightly bluer; it is more common in commercial kitchens, utility rooms and task-oriented spaces. For most US residential kitchens we recommend 4000K.

Will it fit a standard integrated ceiling (集成吊顶)?

Yes. Both panel sizes drop straight into the matching T-bar grid module — 300 × 300 mm or 300 × 600 mm. No custom cut-out is required: lift out an existing module and slot the panel in. The driver is integrated, so it connects directly to your 220–240V AC mains.

How long will 15,000 hours last in daily use?

At 3 hours of use per day, 15,000 hours is roughly 13.5 years. At 5 hours per day (busy kitchen), it is about 8 years. The panel is rated L70B50 @ Ta 25°C — after 15,000 hours, at least 50% of panels in a batch will still output 70% of their initial lumen level.

What makes RC052-G2 different from a standard LED ceiling panel?

Full-spectrum LEDs with CRI ≥ 90 render food, skin tones and surfaces accurately with no harmful blue-light spike. The housing is an all-plastic, fully-sealed back shell — corrosion-proof and condensation-proof in humid rooms. The 35 mm ultra-thin body fits shallow ceiling voids, and the internal grid-array reinforcement keeps the panel flat over years of thermal cycling.
