PHILIPS RC052 G2 LED1920/CW 24W W30L30 9114 019 05832

Description

CRI ≥ 90

Full-Spectrum High Color Rendering

IP40 / IP20

Light Face IP40 · Housing IP20

15,000 hrs

Lifespan L70B50 @ Ta 25°C

35 mm

Ultra-Thin Panel · All Ceilings

2nd Generation Integrated Ceiling Panel 6000K Cool White

Philips’ RC052-G2 is a slim integrated LED ceiling panel purpose-built for kitchens and bathrooms — full-spectrum high-CRI light, IP40 light-emitting face, 35 mm thin housing, and a fully-sealed plastic back shell that resists moisture in humid rooms.

PHILIPS RC052 G2 LED1920/CW 24W W30L30 9114 019 05832

Philips’ 1,920-lumen slim LED ceiling panel — 24W, 6000K Cool White, CRI ≥ 90, UGR<22. 300×300×35 mm drop-in panel for W30L30 integrated ceilings, IP40 light-emitting face, 35 mm ultra-thin housing. Best for small kitchens, bathrooms, hallways and study nooks with a 300 × 300 mm ceiling cutout.

1,920 lm 24W · 6000K Cool White · 300×300×35 mm W30L3012NC: 9114 019 05832

Color Temperature

2 CCTs across the range — 4000K Neutral White and 6000K Cool White. This model: 6000K (CW). All 8 SKUs in stock — mixed orders welcome.

Request Bulk Quote

✓ 15+ Years Philips Expertise ✓ Large Inventory · Fast Shipping ✓ Worldwide Delivery ✓ CQC Certified

Gallery

Product Images

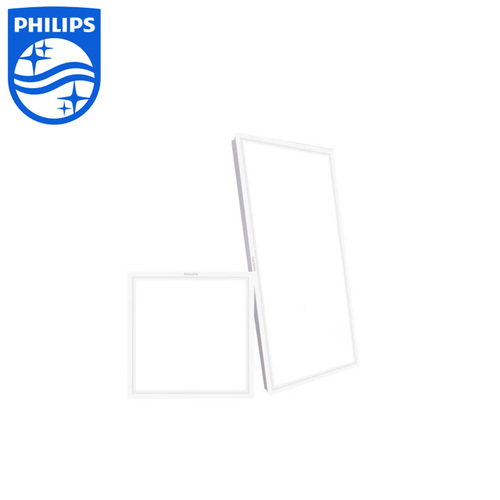

View the RC052-G2 24W / 6000K W30L30 from every angle.

Designed for the kitchen and bath

Full-spectrum light. IP40 light face. 35 mm thin housing. Sealed plastic back shell. Drop-in module for 300 × 300 / 300 × 600 integrated ceilings.

Full-Spectrum, CRI ≥ 90

High color rendering index (CRI ≥ 90) renders food, skin tones and surfaces accurately. Full-spectrum output, no harmful blue-light spike — comfortable for long cooking or grooming sessions.

IP40 Light Face

Light-emitting face is rated IP40 — protected against splashing water, dust and insects. Safe above kitchen sinks and next to shower zones. Whole-fixture IP20 (indoor ceiling void).

35 mm Ultra-Thin Housing

35 mm total panel thickness fits shallow ceiling voids and low-ceiling installations. No clearance issues in standard residential ceilings or low-profile integrated ceilings.

High Output, Even Light

Direct-lit (down-lit) LED architecture paired with a high-transmittance diffuser. This 24W version delivers 1,920 lm evenly across the full panel — no hot spots, no dark corners.

Fully-Sealed Plastic Shell

All-plastic back housing with a fully-closed back shell — no exposed metal, no condensation risk, corrosion-proof in humid kitchens and bathrooms.

Grid-Array Reinforced Structure

Internal grid-array reinforcement keeps the panel flat over years of thermal cycling. No warping, no sagging, no light leak from the seams.

Performance

Technical Specifications — 24W / 6000K W30L30

Exact specifications for the Philips RC052-G2 24W / 6000K W30L30 panel (12NC 9114 019 05832).

Luminous Flux

1,920 lm

Power

24W

Efficacy

~ 80 lm/W

Color Temperature

6000K (Cool White)

CRI

≥ 90 (full-spectrum, no harmful blue spike)

UGR (Glare)

UGR < 22 (indoor task-area compliant)

Power Factor

0.5

Input Voltage

220V – 240V AC, 50/60Hz

IP Rating (light face)

IP40 (light-emitting face)

IP Rating (whole fixture)

IP20 (indoor ceiling void)

Panel Dimensions (L × W × H)

300×300×35 mm · 35 mm thick

Mounting

Integrated ceiling (T-bar grid) — W30L30 drop-in module

Housing

All-plastic fully-sealed back shell, white

Lifespan

15,000 hrs L70B50 @ Ta 25°C

Operating Temperature

-10°C to +40°C

Certifications

CQC

How to order

Ordering Guide — 8 SKUs

Complete RC052-G2 range with ordering codes. Your selected model is highlighted below.

12NC	Description	Watts	CCT	Qty/Ctn
9114 019 05827	RC052 G2 LED Ceiling Light 18W NW	18W	4000K	20
9114 019 05828	RC052 G2 LED Ceiling Light 24W NW	24W	4000K	20
9114 019 05829	RC052 G2 LED Ceiling Light 24W NW	24W	4000K	10
9114 019 05830	RC052 G2 LED Ceiling Light 36W NW	36W	4000K	10
9114 019 05831	RC052 G2 LED Ceiling Light 18W CW	18W	6000K	20
9114 019 05832	RC052 G2 LED Ceiling Light 24W CW	24W	6000K	20
9114 019 05833	RC052 G2 LED Ceiling Light 24W CW	24W	6000K	10
9114 019 05834	RC052 G2 LED Ceiling Light 36W CW	36W	6000K	10

Looking for the complete overview? See the RC052-G2 series page → Upgrade to 24W / W30L60 (1,920 lm) →

The full range

All 8 Configurations

Compare the complete RC052-G2 range — color temperatures and panel sizes for every configuration.

All Color Temperatures — 24W / W30L30

4000K Neutral White6000K Cool White

All Panel Sizes & Outputs

18W

W30L30 · 1,440 lm

24W

W30L30 · 1,920 lm

24W

W30L60 · 1,920 lm

36W

W30L60 · 2,700 lm

Common questions

FAQ — 24W / 6000K W30L30

What is the 24W / 6000K RC052-G2 best for?

The 24W / 6000K RC052-G2 is best for small kitchens, bathrooms, hallways and study nooks with a 300 × 300 mm ceiling cutout. At 24W it delivers 1,920 lm from a slim 300×300×35 mm panel that drops into a standard W30L30 ceiling cutout. If you need more output or a longer fixture, try the 24W / 300 × 600 mm (1,920 lm, same watt, wider coverage) or the 36W / 300 × 600 mm (2,700 lm).

What is the difference between IP40 and IP20 on this panel?

IP40 is the rating of the light-emitting face — the visible surface of the panel — meaning it is protected against splashing water, dust and insects. IP20 is the rating of the full fixture body, meaning it is for indoor ceiling-void use. Together they are exactly what you need in a kitchen or bathroom: the panel face can sit directly above a sink or next to a shower zone, while the wiring cavity stays in the dry ceiling space above. The PDF spec sheet calls this out explicitly: whole-fixture IP20, light-emitting face IP40.

4000K vs 6000K — which should I pick?

4000K (Neutral White) is the standard choice for kitchens, bathrooms, hallways and work areas — it renders colors cleanly and feels bright without being cold. 6000K (Cool White) reads crisper and slightly bluer; it is more common in commercial kitchens, utility rooms and task-oriented spaces. For most US residential kitchens we recommend 4000K.

How long will 15,000 hours last in daily use?

At 3 hours of use per day, 15,000 hours is roughly 13.5 years. At 5 hours per day (busy kitchen), it is about 8 years. The panel is rated L70B50 @ Ta 25°C — after 15,000 hours, at least 50% of panels in a batch will still output 70% of their initial lumen level.

What does UGR<22 mean?

UGR (Unified Glare Rating) below 22 means the panel is suitable for general indoor task areas — kitchens, offices, classrooms — without causing visual discomfort from direct glare. It is the standard ceiling-panel threshold for indoor work lighting.

Will it fit a standard integrated ceiling (集成吊顶)?

Yes. The RC052-G2 is designed for integrated ceilings (300 × 300 mm or 300 × 600 mm module). The 300×300×35 mm panel drops straight into the matching T-bar grid. No custom cut-out is required — just lift out an existing module and slot this one in. Driver is integrated, so it connects directly to your 220–240V AC mains.
