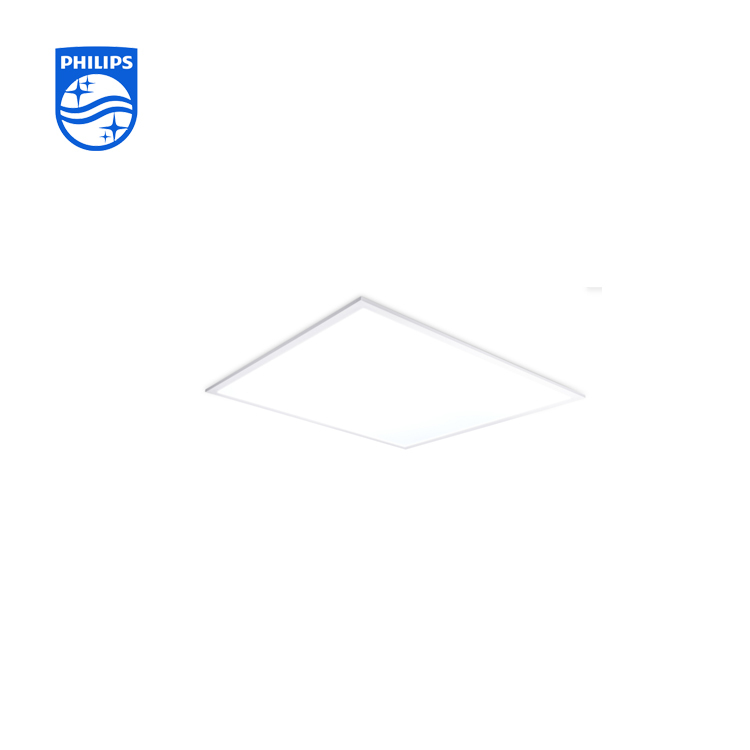

Name: PHILIPS RC038V Back-Lit LED Panel
Brand: Honnex Lighting
Availability: InStock
Rating: 5 (1 reviews)

Home > PHILIPS LED INDOOR LIGHT > PHILIPS PANEL > PHILIPS RC038V

Description

93–95 lm/W

Efficacy

IP20 / IK02

Indoor Protection Class

30,000 hrs

Lifespan L70B50 @ Ta 25°C

3,350–4,000 lm

12 SKUs · 36W / 42W

Office Series Back-Lit Panel 4000K / 6500K

Philips’ back-lit LED panel for office, healthcare and commercial ceilings — 3,350–4,000 lm across the 36W/42W range, RG0 blue-light exempt, PF > 0.95, ripple < 10%, five mounting options.

The RC038V is Philips’ new-generation slim back-lit panel — 93–95 lm/W, ultra-flat dedicated Philips-logo backplate, external driver, and a 30,000-hour lifespan. Five mounting methods cover t-bar, plaster, suspension, integrated-ceiling (CPC) and surface installation.

PHILIPS RC038V Back-Lit LED Panel

Step 1: Select System Power

36W · LED33S 42W · LED40S

Step 2: Select Panel Format & Color Temperature

W60L60 CPC 4000K W60L60 CPC 6500K W60L60 CPC 6500K W60L60 CLI 4000K W60L60 CLI 6500K W60L60 CLI 6500K W30L120 CPC 4000K W30L120 CPC 6500K W30L120 CPC 6500K W30L120 CLI 4000K W30L120 CLI 6500K W30L120 CLI 6500K

Request Bulk Quote

✓ Authorized Philips Distributor ✓ Large Inventory · Fast Shipping ✓ Worldwide Delivery ✓ CCC · Energy Label

Gallery

Product Images

View the RC038V back-lit LED panel family from every angle.

Designed for the office

Dedicated flat backplate with Philips logo. PS diffuser, PMMA optics. External driver with flying leads. 30,000 hr lifespan. Five installation methods.

New Flat Backplate with Philips Logo

Reinforced stiffening ribs and a dedicated Philips-logo backplate. Surface flatness kept within 2.5 mm (60×60) and 2.8 mm (30×120) at both cold and hot states — a visibly tighter ceiling finish than the RC037V G3.

93–95 lm/W Back-Lit Distribution

PS 0.8 mm diffuser plus PMMA optical lens. 3,350–4,000 lm at 93–95 lm/W with an even, low-glare light — CRI ≥ 80, SDCM ≤ 5, UGR ≤ 25. Comfortable for office, classroom and healthcare work.

External Driver with Flying Leads

Driver mounted on the side of the housing in a V0-rated flame-retardant enclosure, with 120 mm of exposed flying lead and strip length above 48 mm. Philips-branded and easy to wire in plenum ceilings.

RG0 · Ripple < 10% · PF > 0.95

RG0 blue-light hazard (exempt). Power factor > 0.95, ripple current < 10%, PstLM < 1 and SVM < 1.6 — meets office-grade visual-comfort standards for long-hour work.

Five Mounting Methods

T-bar grid, plaster ceiling, suspension pendant, integrated ceiling (CPC) and surface mount — all supported with shared RC048B accessories across every SKU in the family.

30,000 hr L70/B50 Lifespan

30,000-hour rated life at Ta 25°C. ST13 cold-rolled steel housing with PP-film surface in RAL 9003 white. CCC certified with China energy-label compliance.

Performance

Technical Specifications — Full Family

Family-level specifications for the RC038V. Per-SKU values appear on each model page and in the ordering guide.

System Power

36W (LED33S) / 42W (LED40S)

Luminous Flux

36W: 3,350 lm42W: 4,000 lm

Efficacy

93 lm/W (36W)95 lm/W (42W)

Color Temperature

4000K (NW)6500K (CW)

Beam / Distribution

Back-lit, 115°/120° wide (per configuration)

CRI / SDCM

CRI ≥ 80 · SDCM ≤ 5

UGR

≤ 25

Blue-Light Hazard

RG0 (exempt)

Ripple / Flicker

Ripple < 10% · PstLM < 1 · SVM < 1.6

Input Voltage

220V – 240V AC, 50/60Hz

Power Factor

> 0.95

Surge Protection

L-N: 1KV · LN-PE: 2KV

Insulation Class

Class I

Driver

External driver, V0 enclosure, 120 mm flying lead (strip > 48 mm)

IP / IK Rating

IP20 / IK02

Housing

ST13 cold-rolled steel, PP film surface (backplate 0.18 / 0.20 mm), RAL 9003

Diffuser

PS 0.8 mm · PMMA optical lens

Panel Sizes

595×595 · 295×1195 (grid) · 600×600 · 300×1200 (CPC)

Height

35 mm (most SKUs) / 36 mm (36W CPC)

Mounting

T-Bar · Plaster · Suspension · Integrated Ceiling (CPC) · Surface

Operating Temperature

-10°C to +35°C (Ta 25°C)

Lifespan

30,000 hrs L70/B50 @ Ta 25°C

Packaging

10 pcs per carton, shrink-wrapped, QR code on lamp and carton

Certifications

CCC · China Energy Label

How to order

Ordering Guide — 12 SKUs

Complete RC038V family with 12NC ordering codes. Open any model page for full details.

12NC	Description	Watts	CCT	Size (mm)	Qty/Ctn
9114 018 95788	RC038V LED33S/840 CLI W60L60	36W	4000K (NW)	595x595×35mm	10
9114 018 95888	RC038V LED33S/865 CLI W60L60	36W	6500K (CW)	595x595×35mm	10
9114 018 95988	RC038V LED33S/840 CLI W30L120	36W	4000K (NW)	295x1195×35mm	10
9114 018 96088	RC038V LED33S/865 CLI W30L120	36W	6500K (CW)	295x1195×35mm	10
9114 018 96388	RC038V LED33S/840 CLI CPC W60L60	36W	4000K (NW)	600x600×36mm	10
9114 018 96488	RC038V LED33S/865 CLI CPC W60L60	36W	6500K (CW)	600x600×36mm	10
9114 018 96588	RC038V LED33S/840 CLI CPC W30L120	36W	4000K (NW)	300x1200×36mm	10
9114 018 96688	RC038V LED33S/865 CLI CPC W30L120	36W	6500K (CW)	300x1200×36mm	10
9114 018 96188	RC038V LED40S/865 CLI W60L60	42W	6500K (CW)	595x595×35mm	10
9114 018 96288	RC038V LED40S/865 CLI W30L120	42W	6500K (CW)	295x1195×35mm	10
9114 018 96788	RC038V LED40S/865 CLI CPC W60L60	42W	6500K (CW)	600x600×35mm	10
9114 018 96888	RC038V LED40S/865 CLI CPC W30L120	42W	6500K (CW)	300x1200×35mm	10

Legend: NW=4000K (Neutral White) | CW=6500K (Cool White) | CPC=Integrated Ceiling (600×600 / 300×1200 mm) | CLI=Grid / T-Bar Panel (595×595 / 295×1195 mm) | MOQ on request — contact our sales team

Evolution

RC037V G3 → RC038V — What Changed

Same proven back-lit platform. Refined for office-grade visual comfort and a flatter ceiling appearance.

RC037V G3

Power factor > 0.9
Backplate flatness < 3 mm (cold & hot)
34 / 35 mm height options
Conventional backplate without dedicated logo panel
36W / 42W system options (grid + integrated ceiling)

→

RC038V

PF > 0.95 — better grid stability
Flatness < 2.5 mm (60×60) / < 2.8 mm (30×120) — visibly tighter ceiling
New dedicated flat backplate with Philips logo and reinforced ribs
35 / 36 mm heights (36 mm for the 36W CPC versions)
New 42W (LED40S) CPC integrated-ceiling tier

The full range

All 12 Configurations

Compare the complete RC038V family — color temperatures and luminaire dimensions for every configuration.

All Color Temperatures

4000K Neutral White6500K Cool White

Luminaire Dimensions (L × W × H in mm)

36W

595×595×35 mm

36W

295×1195×35 mm

36W

600×600×36 mm

36W

300×1200×36 mm

42W

595×595×35 mm

42W

295×1195×35 mm

42W

600×600×35 mm

42W

300×1200×35 mm

Common questions

FAQ — RC038V Family

Which panel sizes and mounting types does the RC038V cover?

Twelve SKUs across two power tiers and two ceiling formats. 595\u00d7595 and 295\u00d71195 mm panels drop into standard t-bar (grid) ceilings or suspend by cable; 600\u00d7600 and 300\u00d71200 mm CPC versions are built for integrated ceilings (集成吊顶). All five installation methods (t-bar, plaster, suspension, CPC, surface) are supported with shared RC048B accessories.

What is the difference between the 36W and 42W versions?

The 36W (LED33S) family delivers 3,350 lm at 93 lm/W and is offered in 4000K (NW) and 6500K (CW). The 42W (LED40S) family delivers 4,000 lm at 95 lm/W and is offered in 6500K (CW) only. Both run at PF > 0.95 with Class I insulation and share the same 35\u201336 mm slim body and 30,000 hr L70/B50 lifespan.

How does the RC038V differ from the previous RC037V G3?

Three confirmed upgrades: power factor raised from > 0.9 to > 0.95; backplate flatness tightened from < 3 mm to < 2.5 mm (60\u00d760) and < 2.8 mm (30\u00d7120) at cold and hot states; and a new dedicated flat backplate with strengthened ribs and the Philips logo. The RC038V also adds a new 42W (LED40S) CPC integrated-ceiling tier.

Why is the 42W family available in 6500K only?

The LED40S (42W) tier is a new high-output addition to the RC038V line, positioned for bright, cooler office and commercial spaces, so it is released in 6500K (CW) only. The 36W tier offers both 4000K (NW) and 6500K (CW) for projects that need warmer or softer light.

What is the difference between CLI and CPC versions?

CLI is the standard grid/t-bar panel version with 595\u00d7595 and 295\u00d71195 mm outer dimensions. CPC is the integrated-ceiling (集成吊顶) version sized 600\u00d7600 and 300\u00d71200 mm, designed to drop into CPC ceiling modules. Lighting performance and driver specifications are identical.

Can I order mixed SKUs in one shipment?

Yes. All 12 RC038V SKUs are in stock and mixed orders are welcome. Each SKU ships 10 pcs per carton. MOQ on request \u2014 contact our sales team for a quotation.
