Home > PHILIPS LED INDOOR LIGHT > PHILIPS PANEL > PHILIPS RC038V

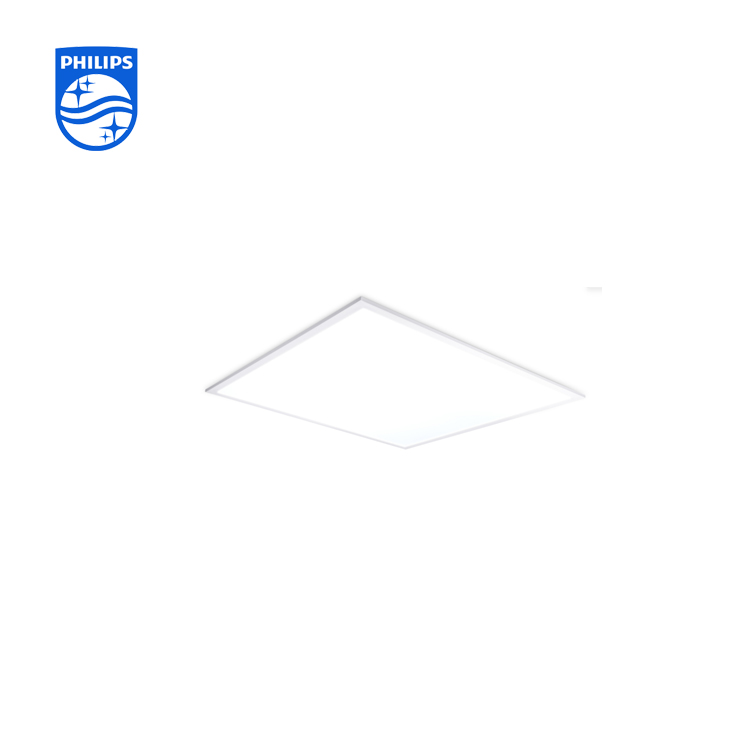

PHILIPS RC038V LED40S/865 CLI W60L60 9114 018 96188

Description

95 lm/W

Efficacy

IP20 / IK02

Indoor Protection Class

30,000 hrs

Lifespan L70B50 @ Ta 25°C

4,000 lm

Luminous Flux (42W)

Office Series Back-Lit Panel 6500K Cool White

Philips’ back-lit LED panel for office, healthcare and commercial ceilings — 3,350–4,000 lm across the 36W/42W range, RG0 blue-light exempt, PF > 0.95, ripple < 10%, five mounting options.

Philips’ 4,000-lumen back-lit LED panel — 42W, 6500K Cool White, 95 lm/W, wide back-lit distribution. IP20 IK02, PF > 0.95, 30,000 hr L70/B50 lifespan. Standard t-bar offices, meeting rooms, training spaces and hospital corridors.

PHILIPS RC038V LED40S/865 CLI W60L60 9114 018 96188

Name: PHILIPS RC038V LED40S/865 CLI W60L60 9114 018 96188
Brand: Honnex Lighting
SKU: 04569
Availability: InStock
Rating: 5 (1 reviews)

42W 6500K Cool White · Back-Lit Office Distribution12NC: 9114 018 96188

Color Temperature

CCTs across the RC038V range — 4000K (NW) and 6500K (CW); this 42W tier is available in 6500K (CW). This model: 6500K (CW). All 12 SKUs in stock — mixed orders welcome.

Request Bulk Quote

✓ Authorized Philips Distributor ✓ Large Inventory · Fast Shipping ✓ Worldwide Delivery ✓ CCC · Energy Label

Gallery

Product Images

View the RC038V 42W / 6500K from every angle.

Designed for the office

Dedicated flat backplate with Philips logo. PS diffuser, PMMA optics. External driver with flying leads. 30,000 hr lifespan. Five installation methods.

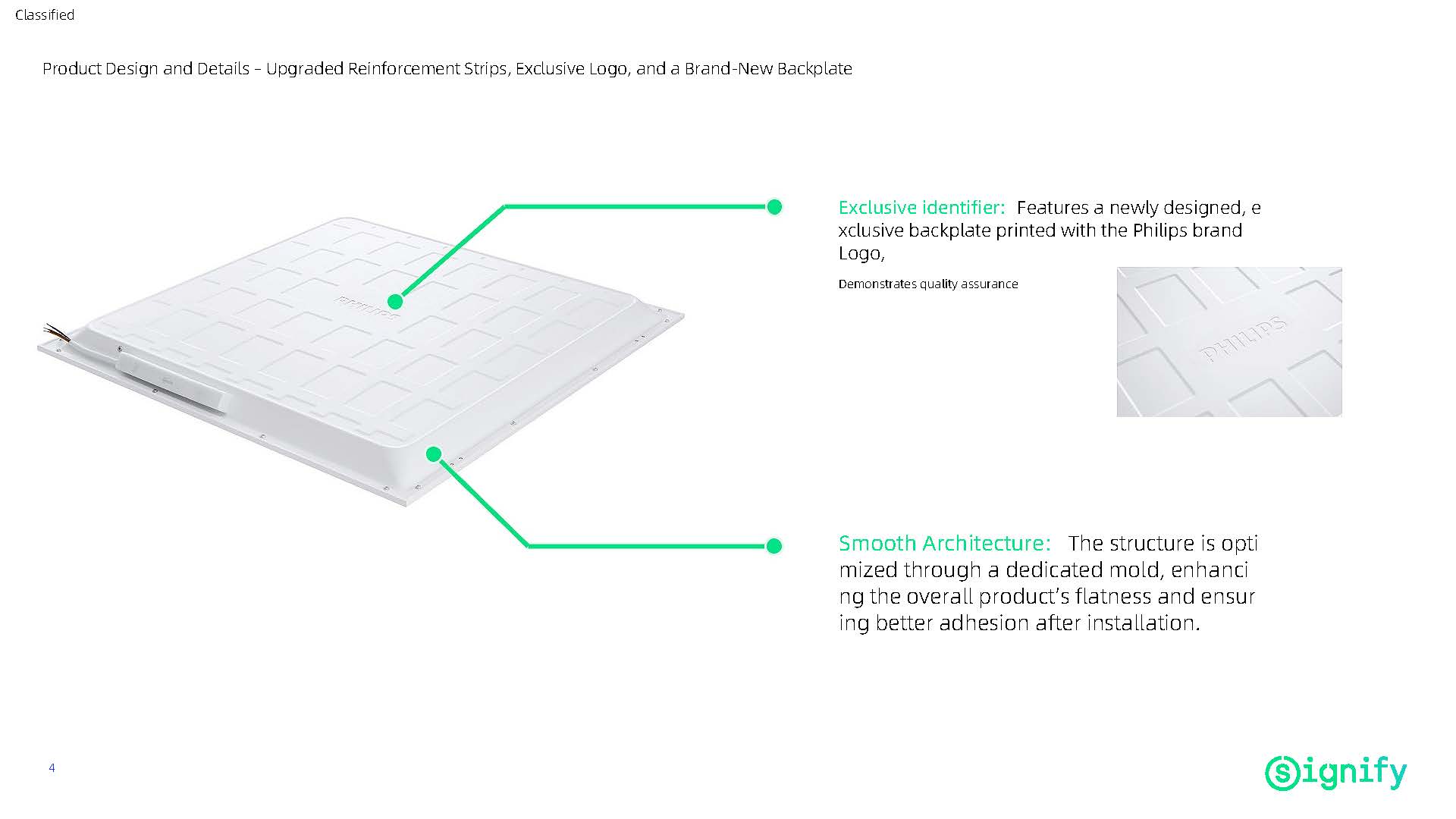

New Flat Backplate with Philips Logo

Reinforced stiffening ribs and a dedicated Philips-logo backplate. Surface flatness kept within 2.5 mm (60×60) and 2.8 mm (30×120) at both cold and hot states — a visibly tighter ceiling finish than the RC037V G3.

95 lm/W Back-Lit Distribution

PS 0.8 mm diffuser plus PMMA optical lens. 4,000 lm at 95 lm/W with an even, low-glare light — CRI ≥ 80, SDCM ≤ 5, UGR ≤ 25. Comfortable for office, classroom and healthcare work.

External Driver with Flying Leads

Driver mounted on the side of the housing in a V0-rated flame-retardant enclosure, with 120 mm of exposed flying lead and strip length above 48 mm. Philips-branded and easy to wire in plenum ceilings.

RG0 · Ripple < 10% · PF > 0.95

RG0 blue-light hazard (exempt). Power factor > 0.95, ripple current < 10%, PstLM < 1 and SVM < 1.6 — meets office-grade visual-comfort standards for long-hour work.

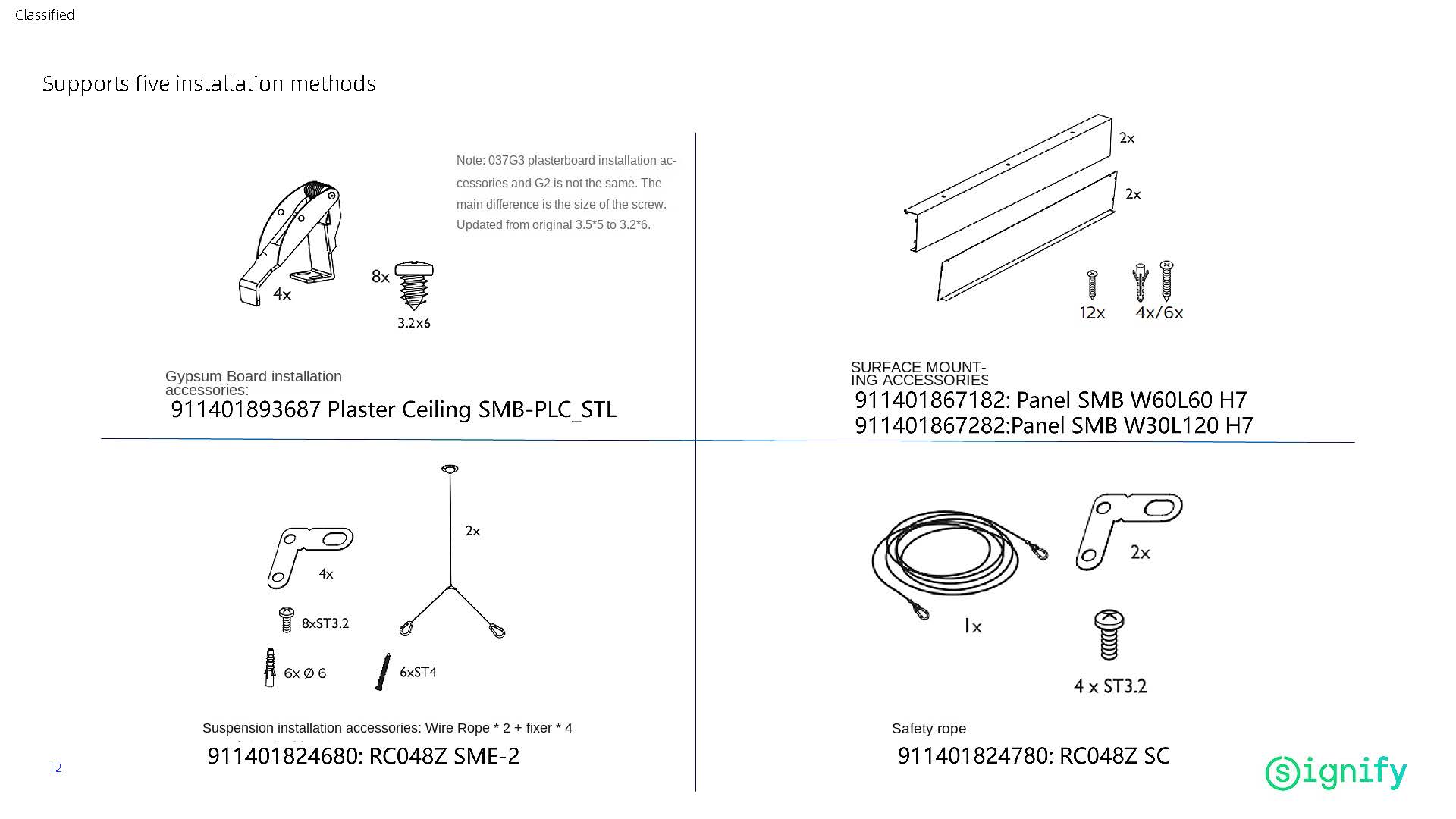

Five Mounting Methods

T-bar grid, plaster ceiling, suspension pendant, integrated ceiling (CPC) and surface mount — all supported with shared RC048B accessories. This 595×595 mm version suits t-bar (grid) / suspended ceilings.

30,000 hr L70/B50 Lifespan

30,000-hour rated life at Ta 25°C. ST13 cold-rolled steel housing with PP-film surface in RAL 9003 white. CCC certified with China energy-label compliance.

Performance

Technical Specifications — 42W / 6500K

Exact specifications for the Philips RC038V LED40S/865 CLI W60L60 (9114 018 96188).

System Power

42W

Luminous Flux

4,000 lm

Efficacy

95 lm/W

Color Temperature

6500K (Cool White)

Beam / Distribution

Back-lit, 115°/120° wide (per configuration)

CRI / SDCM

CRI ≥ 80 · SDCM ≤ 5

UGR

≤ 25

Blue-Light Hazard

RG0 (exempt)

Ripple / Flicker

Ripple < 10% · PstLM < 1 · SVM < 1.6

Input Voltage

220V – 240V AC, 50/60Hz

Power Factor

> 0.95

Surge Protection

L-N: 1KV · LN-PE: 2KV

Insulation Class

Class I

Driver

External driver, V0 enclosure, 120 mm flying lead (strip > 48 mm)

IP / IK Rating

IP20 / IK02

Housing

ST13 cold-rolled steel, PP film surface (backplate 0.18 / 0.20 mm), RAL 9003

Diffuser

PS 0.8 mm · PMMA optical lens

Flatness

< 2.5 mm (60×60) · < 2.8 mm (30×120), cold & hot

Mounting

T-Bar (Grid) / Suspended

Dimensions (L × W × H)

595 × 595 × 35 mm

Operating Temperature

-10°C to +35°C (Ta 25°C)

Lifespan

30,000 hrs L70/B50 @ Ta 25°C

Packaging

10 pcs per carton, shrink-wrapped, QR code on lamp and carton

Certifications

CCC · China Energy Label

How to order

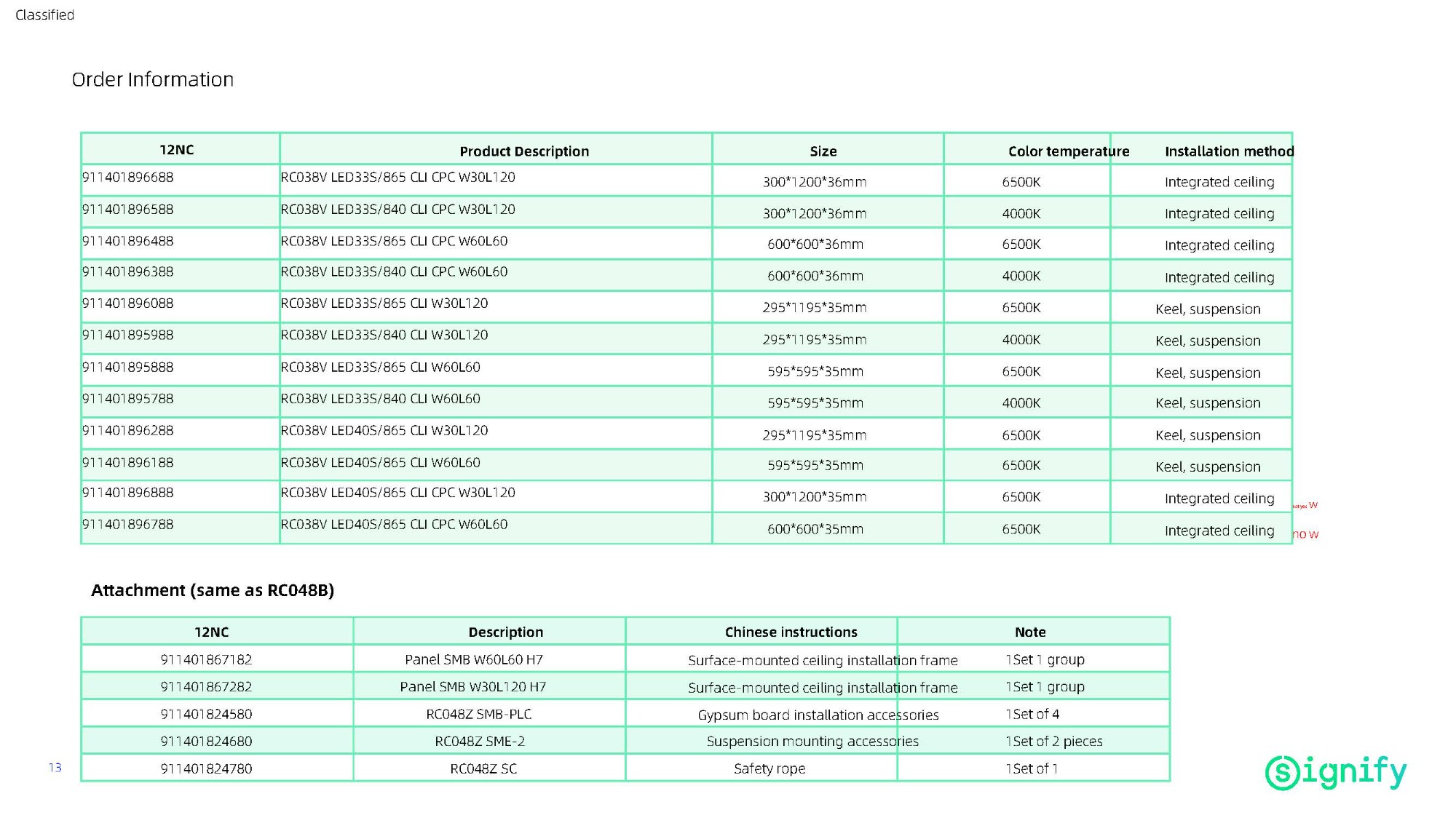

Ordering Guide — 12 SKUs

Complete RC038V family with 12NC ordering codes. Your selected model is highlighted below.

12NC	Description	Watts	CCT	Size (mm)	Qty/Ctn
9114 018 95788	RC038V LED33S/840 CLI W60L60	36W	4000K (NW)	595x595×35mm	10
9114 018 95888	RC038V LED33S/865 CLI W60L60	36W	6500K (CW)	595x595×35mm	10
9114 018 95988	RC038V LED33S/840 CLI W30L120	36W	4000K (NW)	295x1195×35mm	10
9114 018 96088	RC038V LED33S/865 CLI W30L120	36W	6500K (CW)	295x1195×35mm	10
9114 018 96388	RC038V LED33S/840 CLI CPC W60L60	36W	4000K (NW)	600x600×36mm	10
9114 018 96488	RC038V LED33S/865 CLI CPC W60L60	36W	6500K (CW)	600x600×36mm	10
9114 018 96588	RC038V LED33S/840 CLI CPC W30L120	36W	4000K (NW)	300x1200×36mm	10
9114 018 96688	RC038V LED33S/865 CLI CPC W30L120	36W	6500K (CW)	300x1200×36mm	10
9114 018 96188	RC038V LED40S/865 CLI W60L60	42W	6500K (CW)	595x595×35mm	10
9114 018 96288	RC038V LED40S/865 CLI W30L120	42W	6500K (CW)	295x1195×35mm	10
9114 018 96788	RC038V LED40S/865 CLI CPC W60L60	42W	6500K (CW)	600x600×35mm	10
9114 018 96888	RC038V LED40S/865 CLI CPC W30L120	42W	6500K (CW)	300x1200×35mm	10

Selected Variant

9114 018 96188 RC038V LED40S/865 CLI W60L60 Qty / Ctn: 10

Legend: NW=4000K (Neutral White) | CW=6500K (Cool White) | CPC=Integrated Ceiling (600×600 / 300×1200 mm) | CLI=Grid / T-Bar Panel (595×595 / 295×1195 mm) | MOQ on request — contact our sales team

Looking for the complete overview? See the RC038V Back-Lit LED Panel series page →

Evolution

RC037V G3 → RC038V — What Changed

Same proven back-lit platform. Refined for office-grade visual comfort and a flatter ceiling appearance.

RC037V G3

Power factor > 0.9
Backplate flatness < 3 mm (cold & hot)
34 / 35 mm height options
Conventional backplate without dedicated logo panel
36W / 42W system options (grid + integrated ceiling)

→

RC038V

PF > 0.95 — better grid stability
Flatness < 2.5 mm (60×60) / < 2.8 mm (30×120) — visibly tighter ceiling
New dedicated flat backplate with Philips logo and reinforced ribs
35 / 36 mm heights (36 mm for the 36W CPC versions)
New 42W (LED40S) CPC integrated-ceiling tier

The full range

All 12 Configurations

Compare the complete RC038V family — color temperatures and luminaire dimensions for every configuration.

Color Temperatures Available — 42W (LED40S)

6500K Cool White

Luminaire Dimensions (L × W × H in mm)

36W

595×595×35 mm

36W

295×1195×35 mm

36W

600×600×36 mm

36W

300×1200×36 mm

42W

595×595×35 mm

42W

295×1195×35 mm

42W

600×600×35 mm

42W

300×1200×35 mm

Common questions

FAQ — 42W / 6500K

What is the 42W / 6500K RC038V best for?

The 42W / 6500K RC038V is engineered for standard t-bar offices, meeting rooms, training spaces and hospital corridors. At 95 lm/W it delivers 4,000 lm from a wide back-lit distribution (PS diffuser + PMMA optics), with PF > 0.95, ripple < 10% and RG0 blue-light rating — inside office-grade visual-comfort limits (UGR ≤ 25). If 4,000 lm is more than you need, the 36W version in the same 595×595 mm t-bar format delivers 3,350 lm at 93 lm/W — in 4000K (NW) or 6500K (CW).

What are the dimensions of the 42W 595×595 RC038V?

The 42W / 595×595 mm version measures 595×595 × 35 mm (L × W × H), with an ST13 cold-rolled-steel backplate and PS 0.8 mm diffuser. The new flat backplate with reinforced ribs and a Philips logo keeps surface flatness within 2.5 mm (60×60) / 2.8 mm (30×120) mm at both cold and hot states — visibly tighter than the RC037V G3 (3 mm).

What electrical and surge specifications does this RC038V have?

All RC038V SKUs run on 220–240V AC, 50/60 Hz, with power factor > 0.95, Class I insulation and L-N 1 KV / LN-PE 2 KV surge protection. Ripple current < 10%, PstLM < 1 and SVM < 1.6 — practically flicker-free for office use. IP20 / IK02, operating temperature -10°C to +35°C (Ta 25°C).

What mounting options are available for the 595×595 RC038V?

The RC038V family supports five installation methods: t-bar (grid) ceiling, plaster ceiling, suspension (pendant), integrated ceiling (CPC) and surface mount. This model is the T-Bar (Grid) / Suspended version for 595×595 mm ceiling openings. Accessories are shared with the RC048B family: 9114 018 67182 surface-mount frame W60L60, 9114 018 67282 surface-mount frame W30L120, 9114 018 24580 plaster-ceiling kit (RC048Z SMB-PLC), 9114 018 24680 suspension kit (RC048Z SME-2) and 9114 018 24780 safety cable (RC048Z SC).

How does the RC038V differ from the previous RC037V G3?

Three confirmed upgrades: power factor raised from > 0.9 to > 0.95; backplate flatness tightened from < 3 mm to < 2.5 mm (60×60) and < 2.8 mm (30×120) at both cold and hot states; and a new dedicated flat backplate with strengthened ribs and the Philips logo. The 30,000 hr L70/B50 lifespan, RG0 blue-light rating, ripple < 10%, five-way mounting system and 93–95 lm/W efficacy are carried over. The RC038V also adds the 42W (LED40S) CPC integrated-ceiling tier.

Can I order the 42W / 6500K RC038V in bulk?

Yes. This SKU ships 10 pcs per master carton (brown box, shrink-wrapped, QR codes on the lamp body and carton). All 12 RC038V SKUs are in stock and mixed orders are welcome. MOQ on request — contact our sales team for a quotation.
